Reassembling Note for Wiring Harness
›
Around Engine
Around Engine

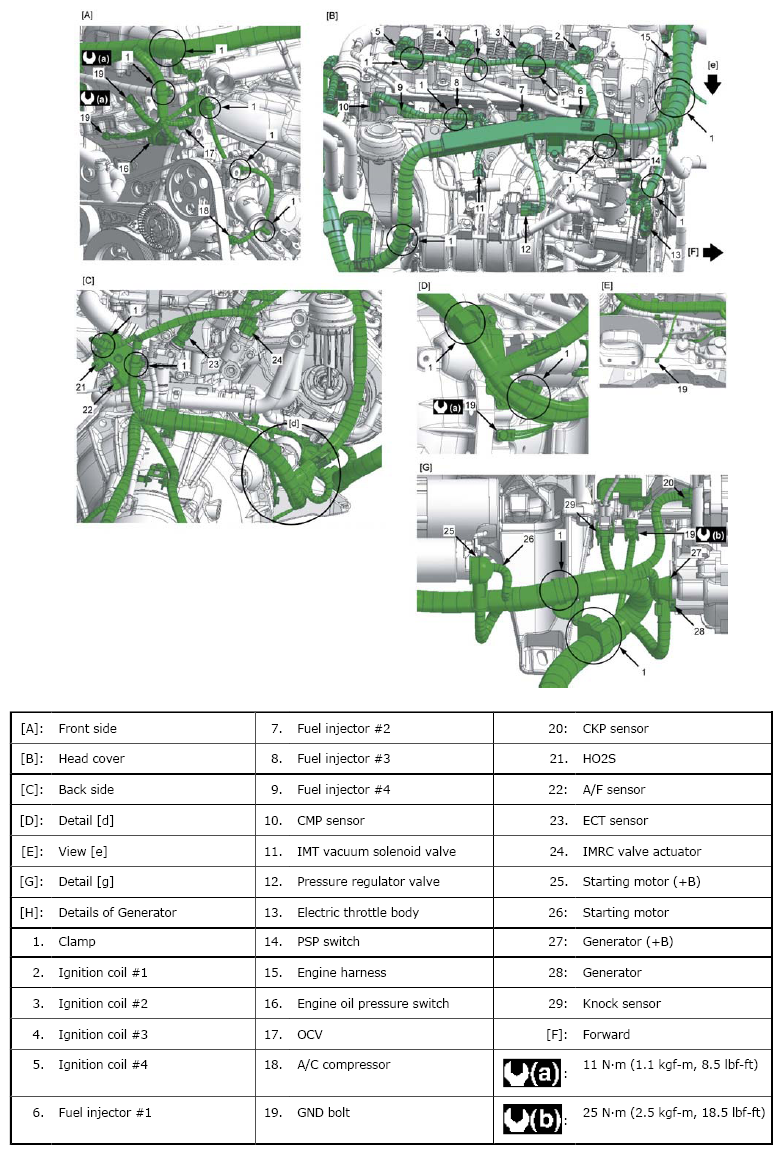

Fig 1: Identifying Wiring Harness Clips (Around Engine)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
