Power Seat Control System Component Location
Power Seat Control System Component Location

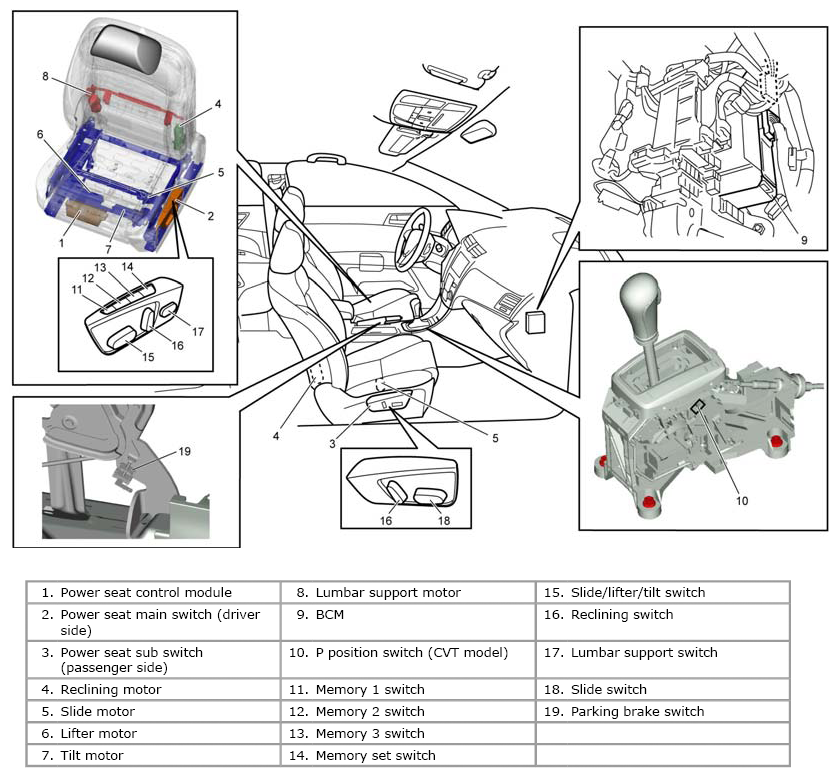

Fig 1: Identifying Power Seat Control System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
