FixVault
Home
›
Suzuki
›
2013
›
Kizashi Base, Automatic CVT Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Wiring Systems
›
Reassembling Note for Wiring Harness
›
Around Engine
Around Engine

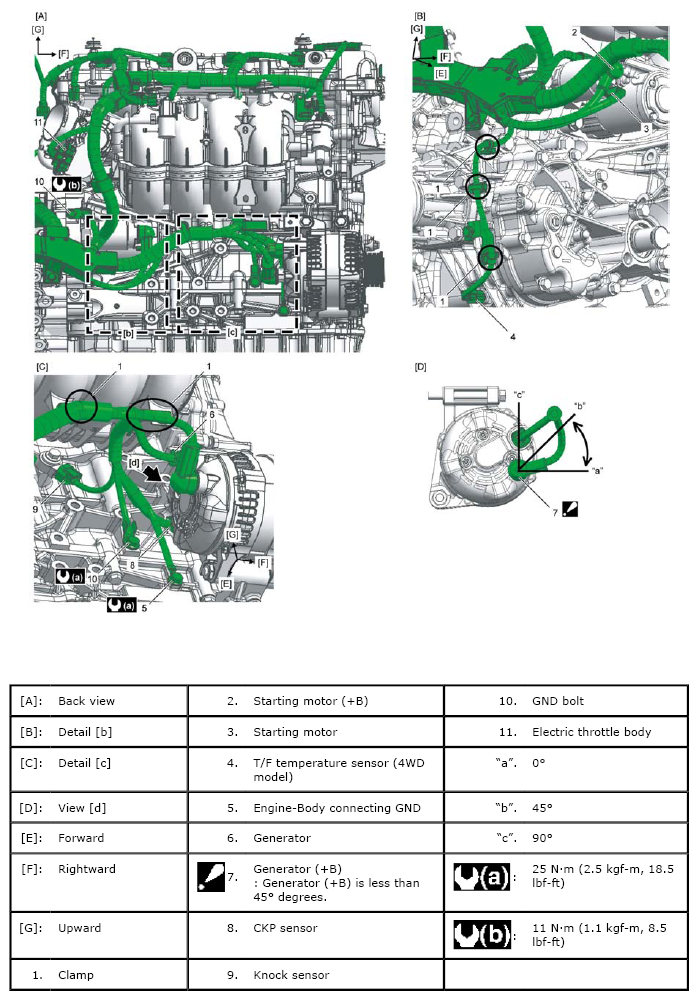

Fig 1: Identifying Wiring Harness - Around Engine
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
