Reassembling Note for Wiring Harness
›
Around Instrument Panel
›
Dash Panel
Dash Panel

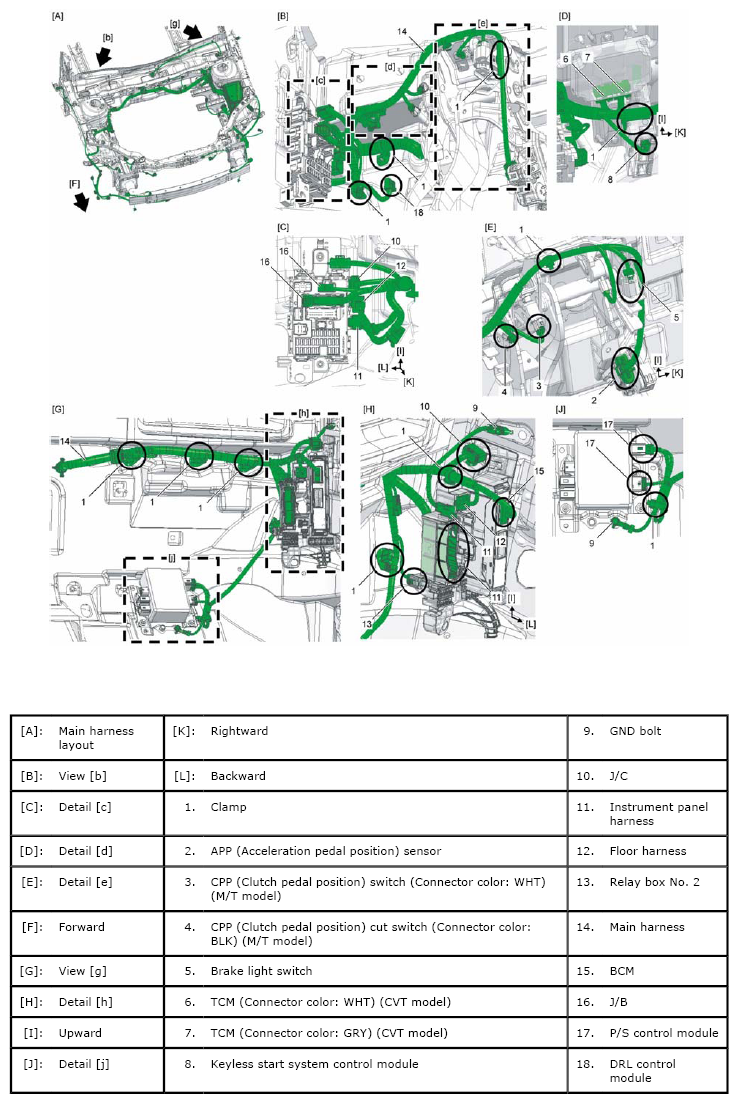

Fig 1: Identifying Wiring Harness - Dash Panel
Courtesy of SUZUKI OF AMERICA CORP.
