Reassembling Note for Wiring Harness
›
Around Transmission
›
CVT Model
CVT Model

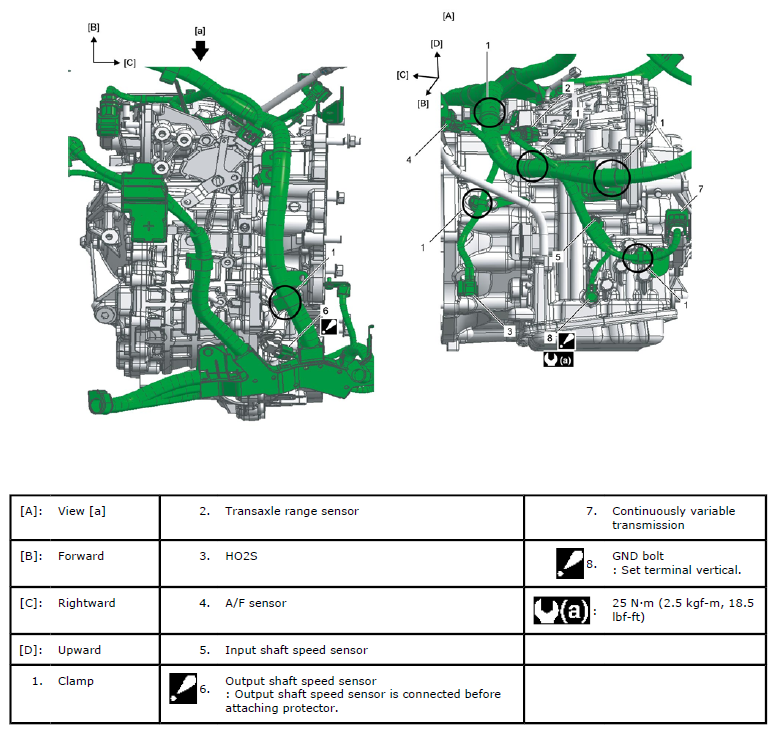

Fig 1: Identifying Wiring Harness - Around Transmission (CVT Model)
Courtesy of SUZUKI OF AMERICA CORP.
