Reassembling Note for Wiring Harness
›
Around Transmission
›
M/T Model
M/T Model

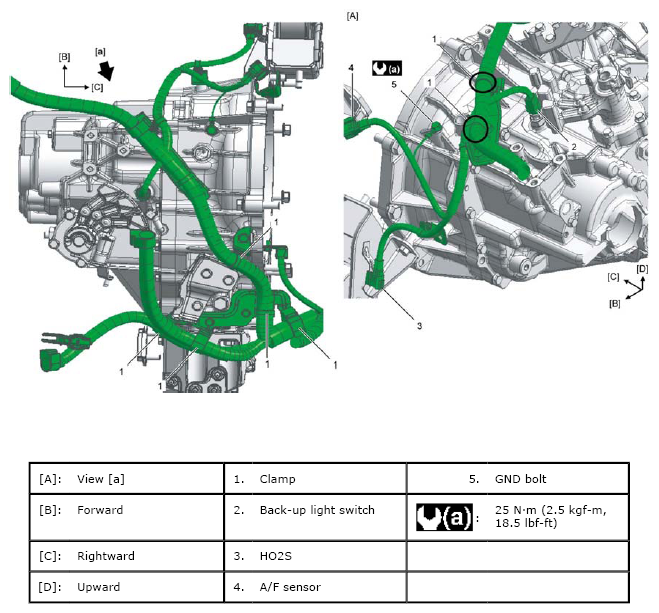

Fig 1: Identifying Wiring Harness - Around Transmission (M/T Model)
Courtesy of SUZUKI OF AMERICA CORP.
