Ignition System Wiring Circuit Diagram
Ignition System Wiring Circuit Diagram

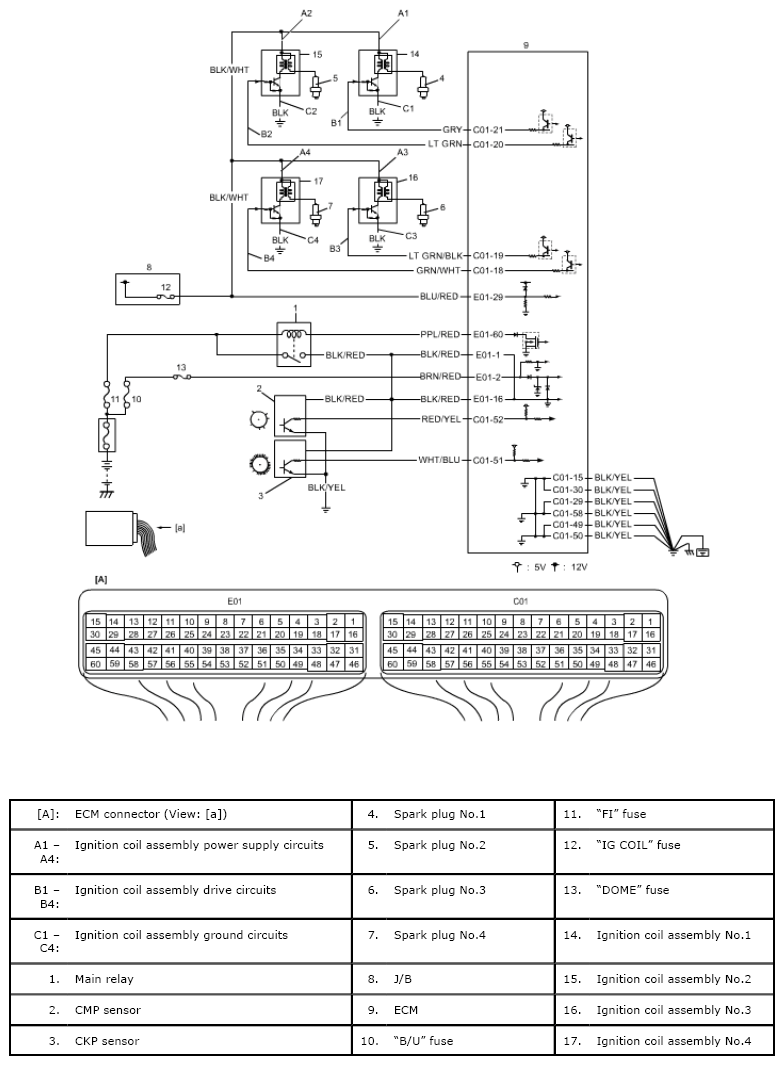

Fig 1: Ignition System Wiring Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
