USB Harness Inspection
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

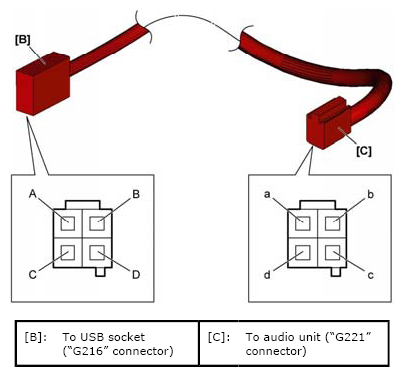

Check continuity between each terminal of USB socket side and audio unit side of USB harness connector as shown in figure.
If check result is not as specified, replace USB harness.
