A/C Compressor Assembly Components

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

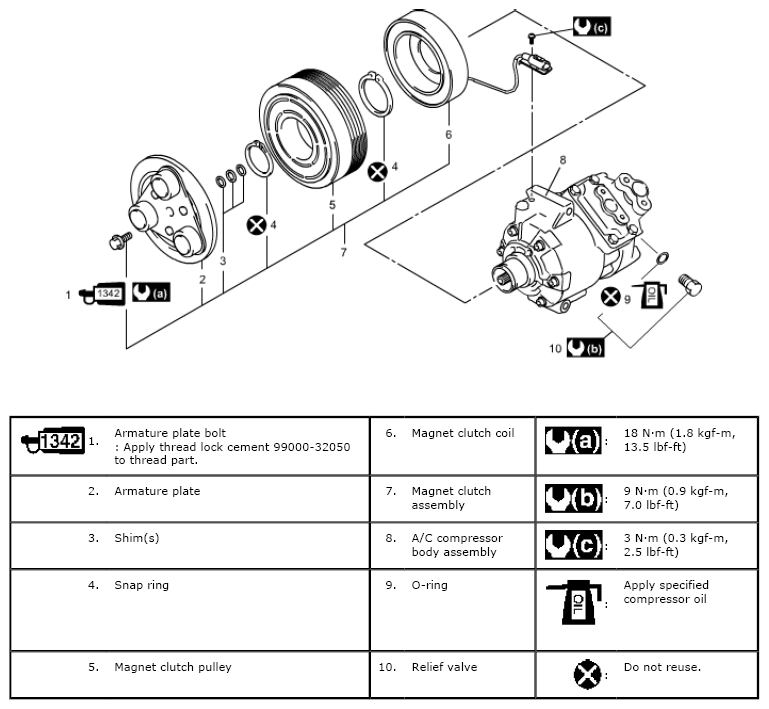

Fig 1: A/C Compressor Assembly Replacement Components With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
