Front Suspension Frame Components
Front Suspension Frame Components

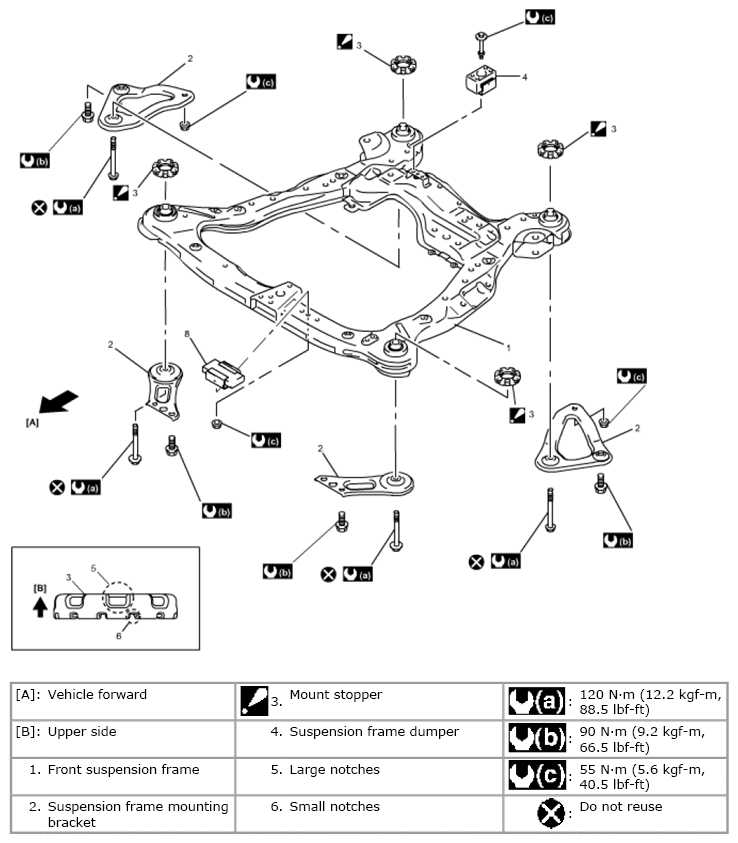

Fig 1: Front Suspension Frame Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
