CVT Fluid Cooler Components
CVT Fluid Cooler Components

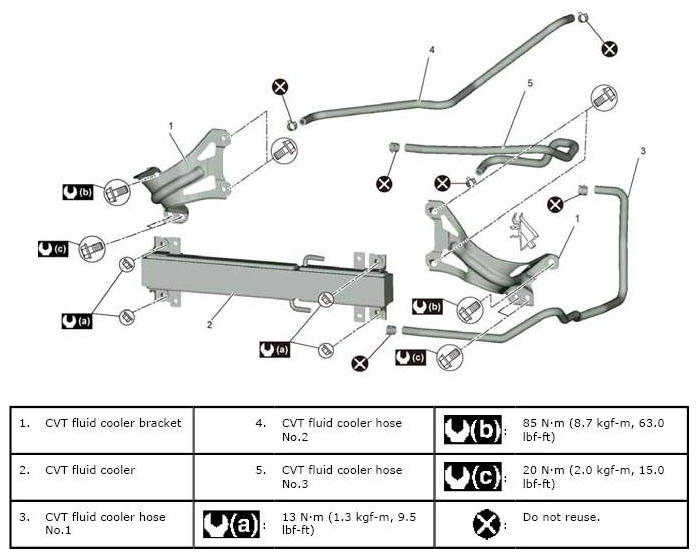

Fig 1: CVT Fluid Cooler Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
