Kizashi Base, Automatic CVT Trans
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Continuously Variable Transaxle (CVT)
›
Schematic and Routing Diagram
›
Electronic Shift Control Input/Output Diagram
Electronic Shift Control Input/Output Diagram

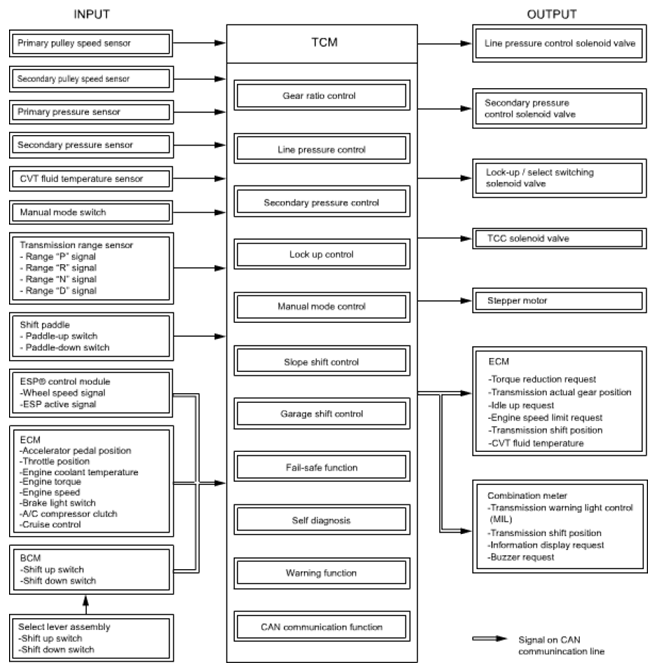

Fig 1: Electronic Shift Control Input And Output Diagram
