Audio System Component Location

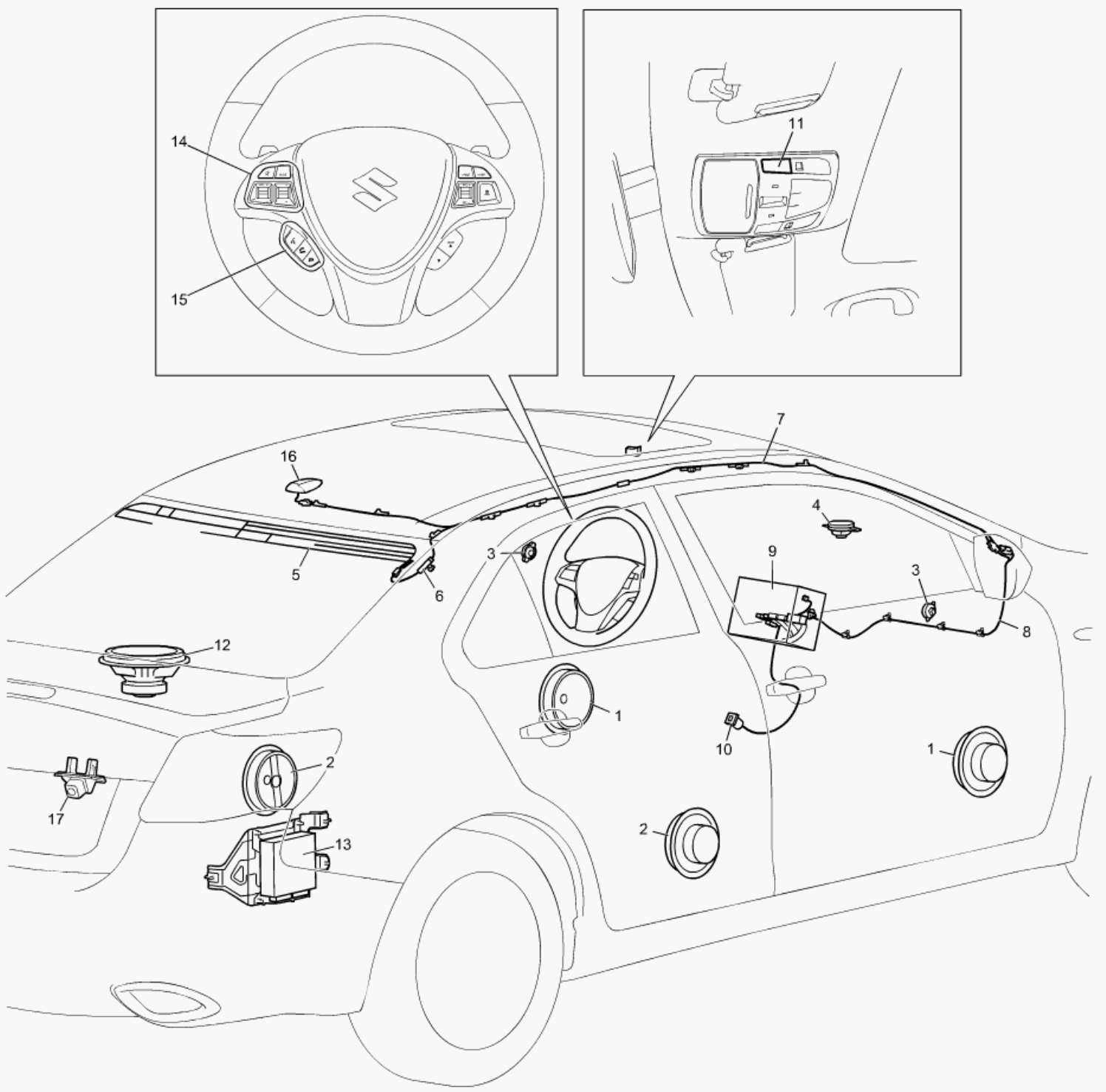

Fig 1: Identifying Audio System Component Location (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Audio System Component Location (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
