Rearview Image Signal

TERMINAL CHANNEL REFERENCE CHART

Channel	Probe	Terminal No.
1	+	G232-3
1	-	G232-5

Measurement condition

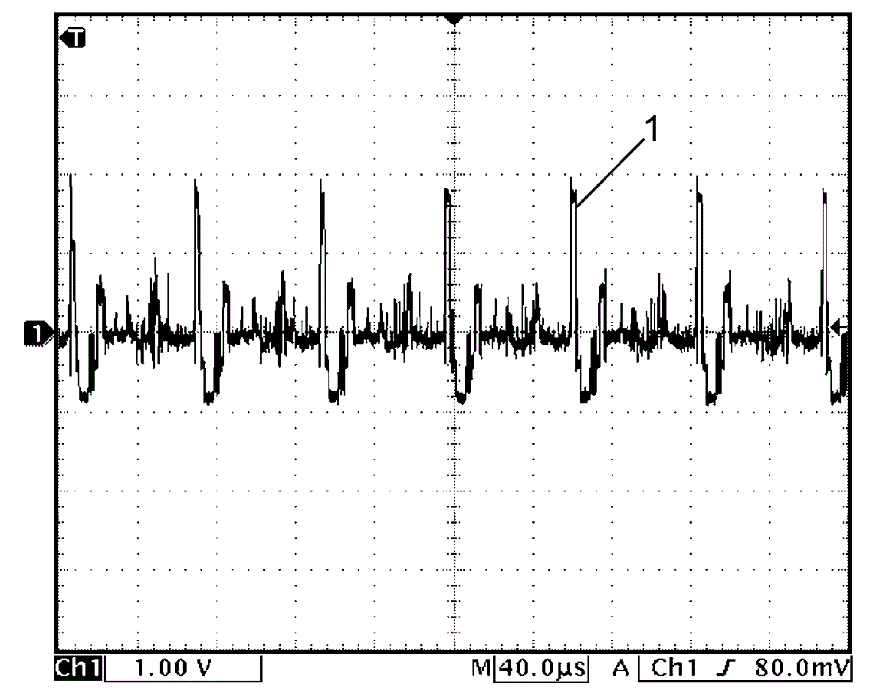

Fig 1: Identifying Rearview Signal Waveform

Courtesy of SUZUKI OF AMERICA CORP.
