Keyless Entry/TPMS Receiver Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove left rear pillar trim. TRIM REMOVAL AND INSTALLATION
  3. Disconnect connector (1), and then remove keyless entry/TPMS receiver (2)

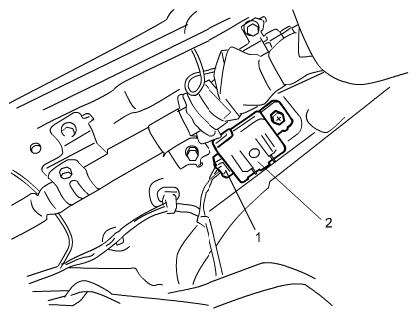

    Fig 1: Identifying Keyless Entry / TPMS Receiver With Connector
    G06527963Courtesy of SUZUKI OF AMERICA CORP.
