Kizashi Base, Standard Trans
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Start System
›
Schematic and Routing Diagram
›
Keyless Start Control Module Input/Output Diagram
Keyless Start Control Module Input/Output Diagram

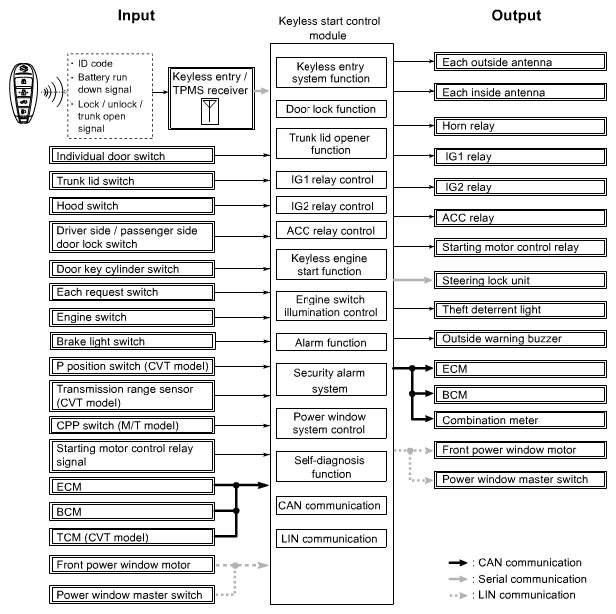

Fig 1: Keyless Start Control Module Input / Output Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
