Front Window Regulator Assembly Removal and Installation: Installation

Reference: FRONT WINDOW REGULATOR ASSEMBLY INSPECTION

Reverse removal procedure noting the following points.

• Apply grease to sliding parts of front window regulator assembly.

  : Grease 99000-25011 (SUZUKI Super Grease A)

• Tighten each part to specified torque referring to FRONT DOOR COMPONENTS .
• Tighten front window regulator bolts in order ("1" to "4") to specified torque.

  Tightening torque

  Front window regulator bolt (a): 8.4 N.m (0.86 kg-m, 6.5 lbf-ft)

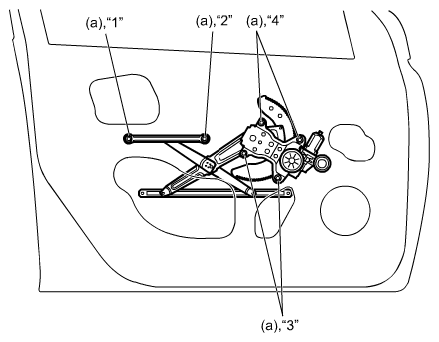

  Fig 1: Identifying Front Window Regulator Bolts Tightening Sequence

  Courtesy of SUZUKI OF AMERICA CORP.
• Initialize power window setup if front window regulator assembly is replaced, see POWER WINDOW SYSTEM INITIALIZATION/RESET (FRONT WINDOWS ONLY) .
