Power Door Mirror Switch Inspection

Remove power door mirror switch, see FRONT DOOR COMPONENTS .
Check continuity between terminals at each switch position.
If check result is not as specified, replace switch.

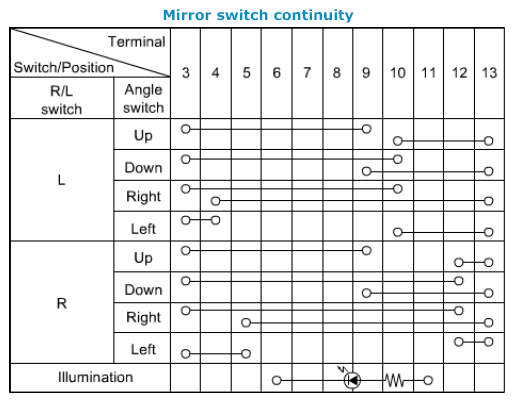

Fig 1: Mirror Switch Continuity Chart
Courtesy of SUZUKI OF AMERICA CORP.

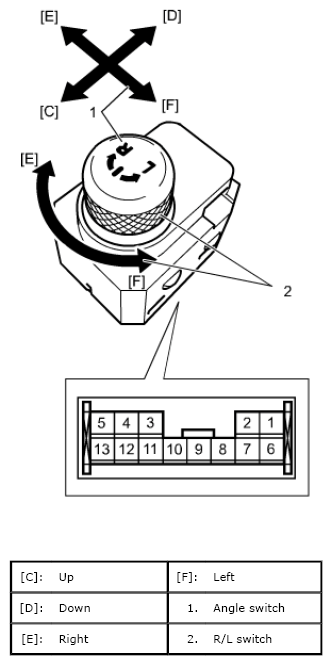

Fig 2: Identifying Power Door Mirror Switch Connector Terminals

Courtesy of SUZUKI OF AMERICA CORP.
