Rear Window Regulator Assembly Removal and Installation: Installation

Reference: REAR WINDOW REGULATOR ASSEMBLY INSPECTION

Reverse removal procedure noting the following points.

• Apply grease to sliding parts of rear window regulator assembly.

  : Grease 99000-25011 (SUZUKI Super Grease A)

• Tighten rear window regulator bolts in order ("1" to "2") to specified torque.

  Tightening torque

  Rear window regulator bolt (a): 8.4 N.m (0.86 kg-m, 6.5 lbf-ft)

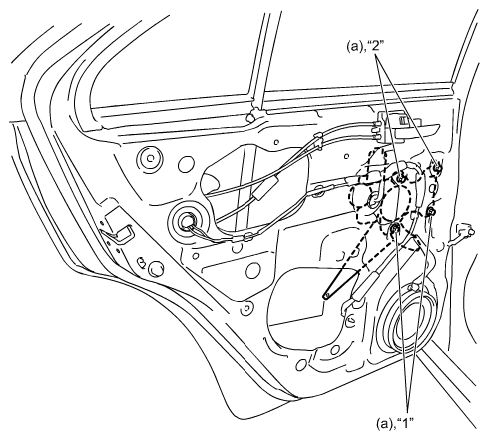

  Fig 1: Identifying Rear Window Regulator Bolts Tightening Sequence

  Courtesy of SUZUKI OF AMERICA CORP.
• Tighten each part to specified torque referring to REAR DOOR COMPONENTS .
