Front Wheel Speed Sensor Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Hoist vehicle a little and remove wheel.
  3. Remove clips (1) and separate front fender lower lining (3) from front fender lining (2).
  4. Remove clips (4) and disconnect front wheel speed sensor connector (5).
  5. Remove front wheel speed sensor bolt (6).
  6. Remove front wheel speed sensor (7) from steering knuckle.

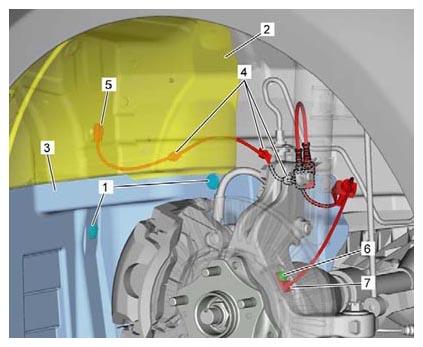

    Fig 1: Identifying Front Fender Lower Lining, Front Wheel Speed Sensor Bolt And Clips
    G06526618Courtesy of SUZUKI OF AMERICA CORP.
