A-6 CVT Control System Circuit Diagram

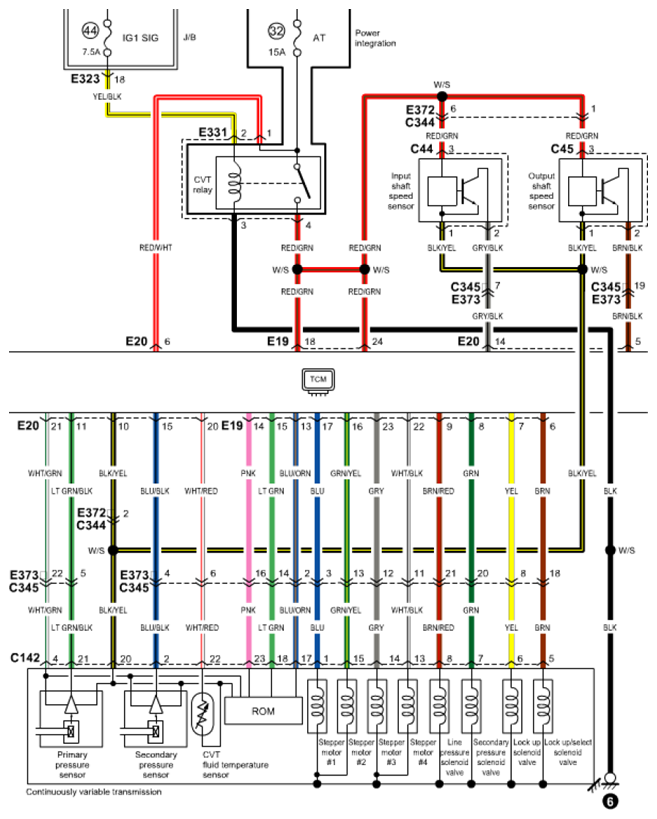

Fig 1: CVT Control System Circuit Diagram (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

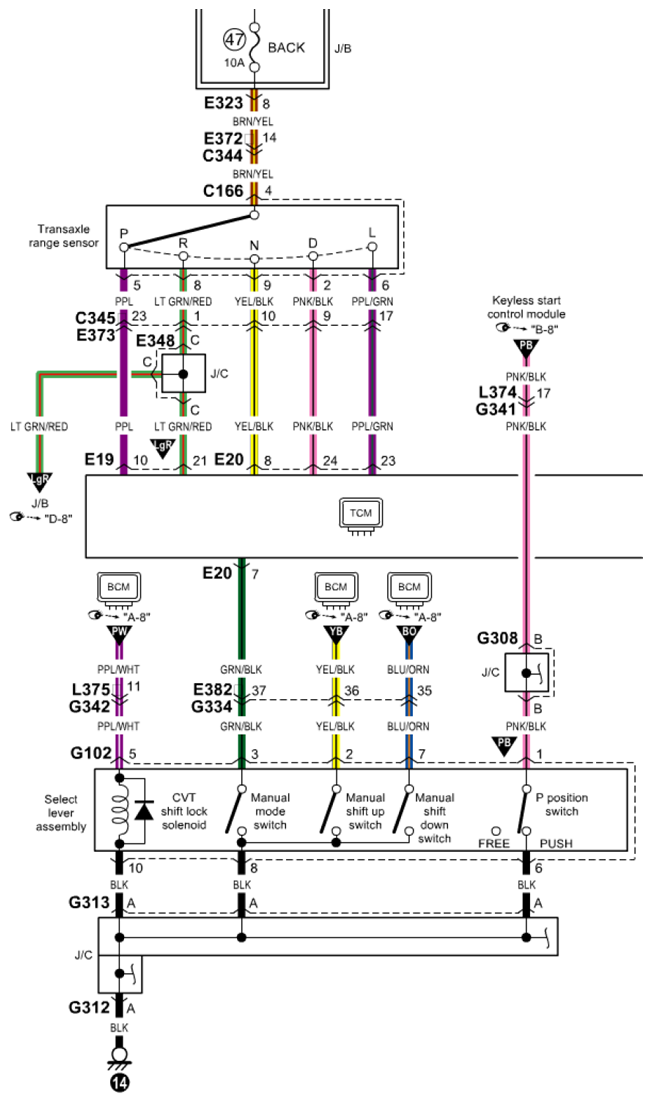

Fig 2: CVT Control System Circuit Diagram (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

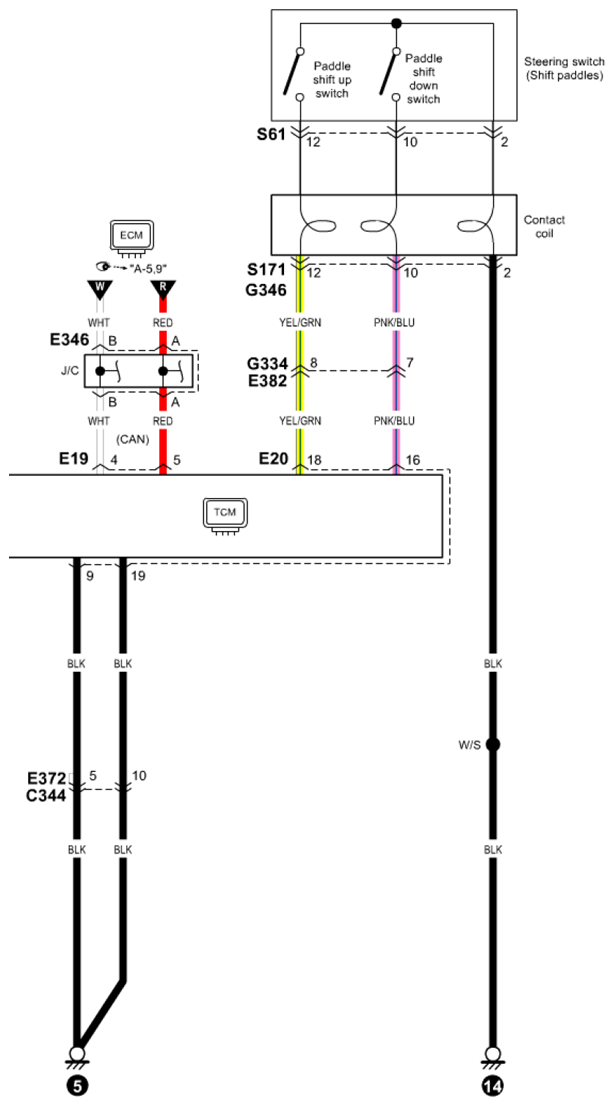

Fig 3: CVT Control System Circuit Diagram (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
