B-8 Keyless Start System Circuit Diagram

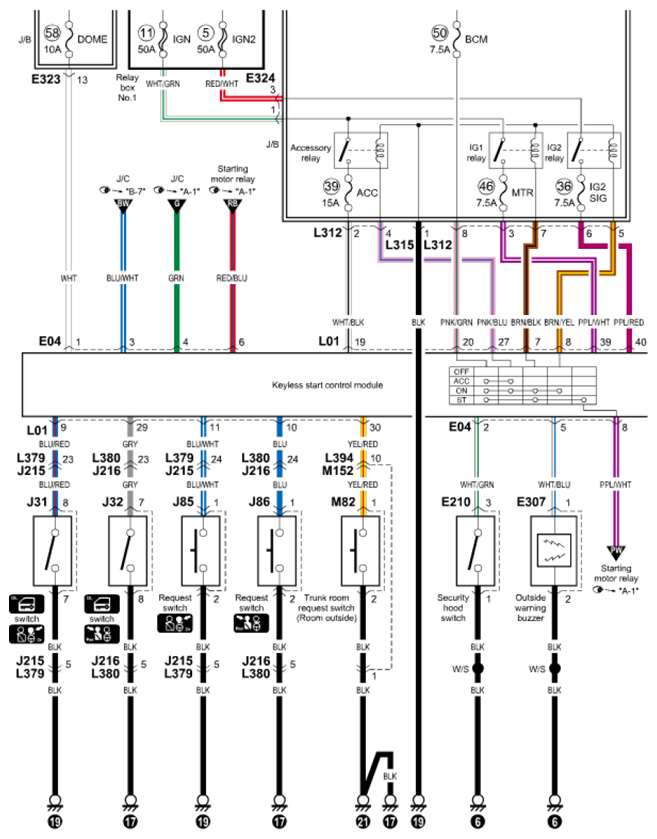

Fig 1: Keyless Start System Circuit Diagram (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

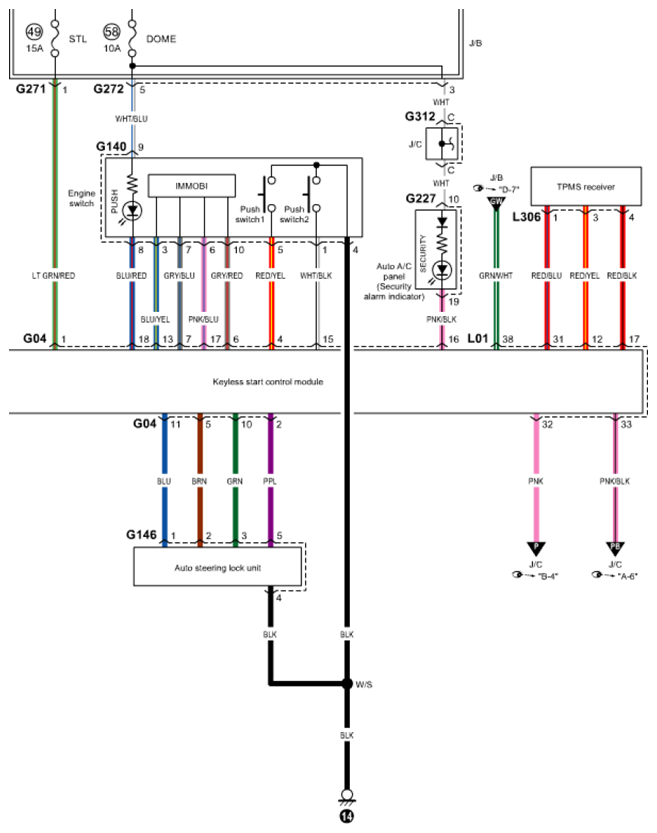

Fig 2: Keyless Start System Circuit Diagram (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

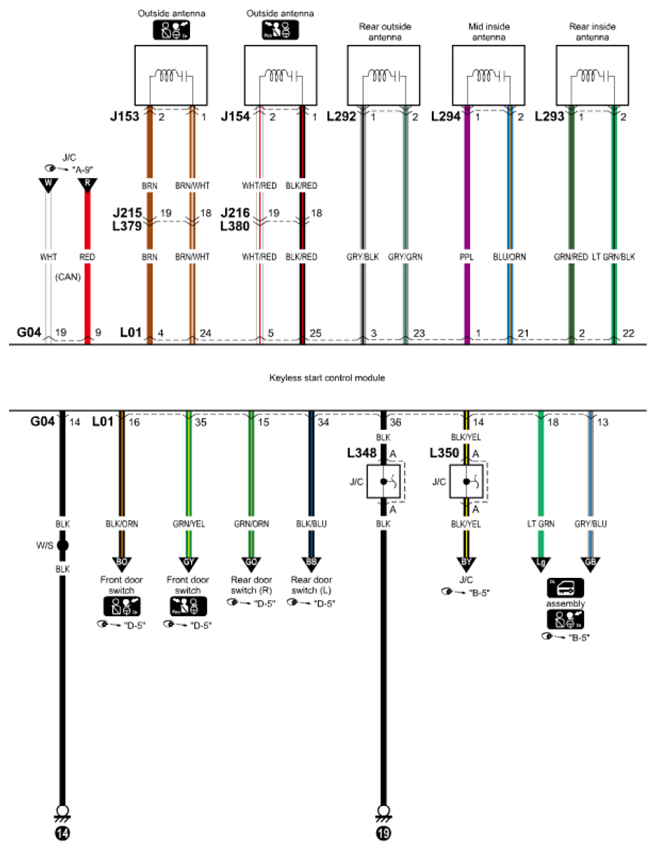

Fig 3: Keyless Start System Circuit Diagram (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
