Fuel Level Sensor Removal and Installation: Removal
- Remove fuel pump assembly from fuel tank, see FUEL PUMP ASSEMBLY REMOVAL AND INSTALLATION .

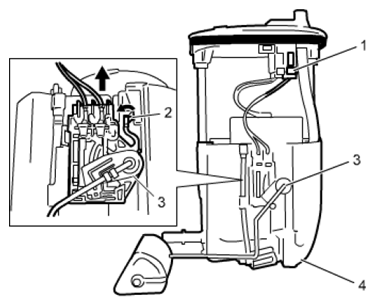

- Disconnect fuel level sensor connector (1).
- Release lock (2), remove fuel level sensor (3) from fuel pump (4) by sliding it in arrow direction as shown in figure.
