Sub Fuel Level Sensor Removal and Installation (4WD Model): Removal

  1. Remove fuel tank from vehicle, see FUEL TANK REMOVAL AND INSTALLATION .
  2. Disconnect sub fuel level sensor connector (1).
  3. Remove sub fuel level sensor (2) from fuel tank.

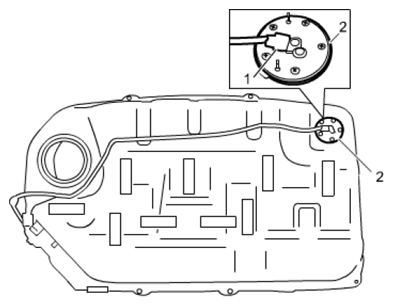

    Fig 1: Identifying Sub Fuel Level Sensor And Connector
    G06526568Courtesy of SUZUKI OF AMERICA CORP.
