Schematic and Routing Diagram
›
Fuel Delivery System Diagram
Fuel Delivery System Diagram

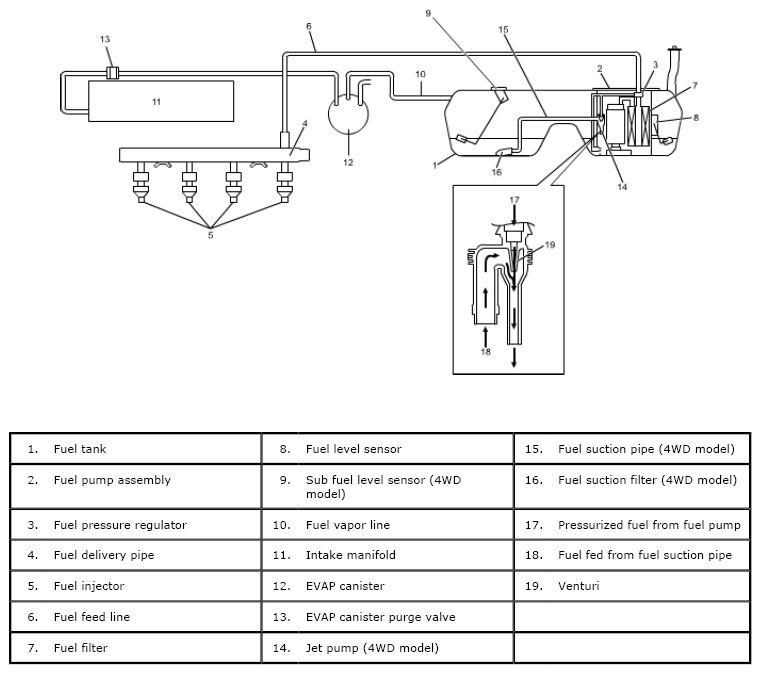

Fig 1: Fuel Delivery System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
