Kizashi Base, Standard Trans
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System
›
Schematic and Routing Diagram
›
Fuel Pump Control System Circuit Diagram
Fuel Pump Control System Circuit Diagram

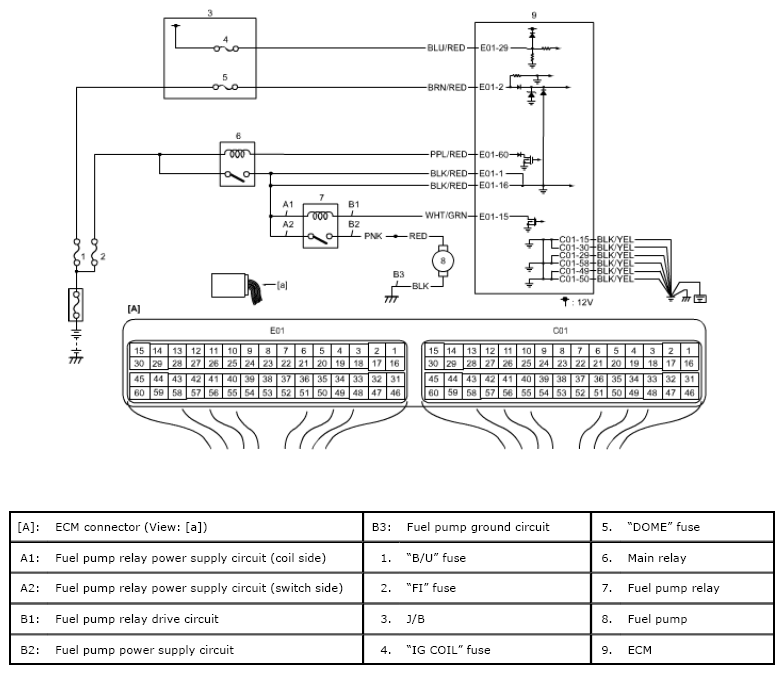

Fig 1: Fuel Pump Control System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
