EVAP System Components
EVAP System Components

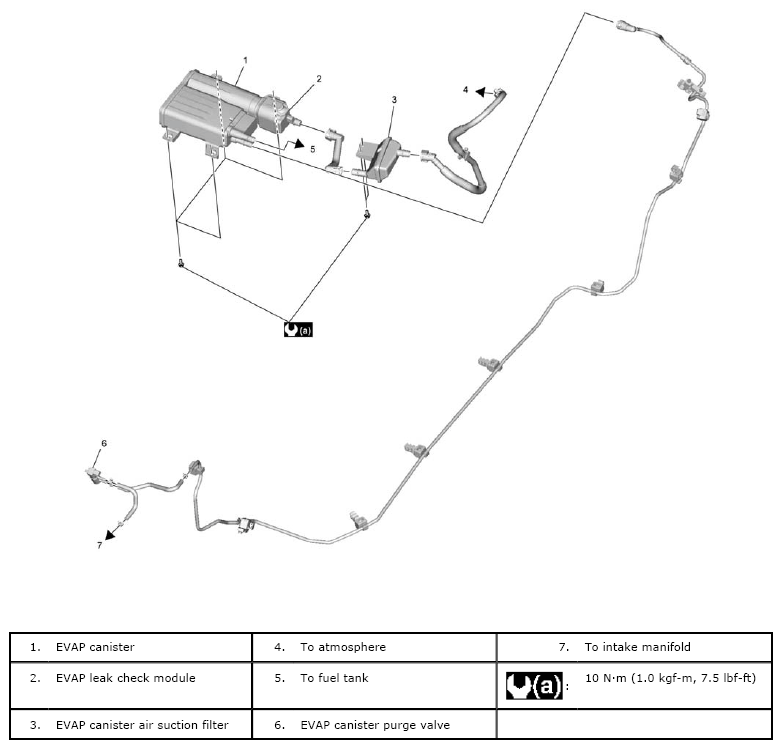

Fig 1: EVAP System Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
