Engine Control System Circuit Diagram
›
Notes
Engine Control System Circuit Diagram: Notes

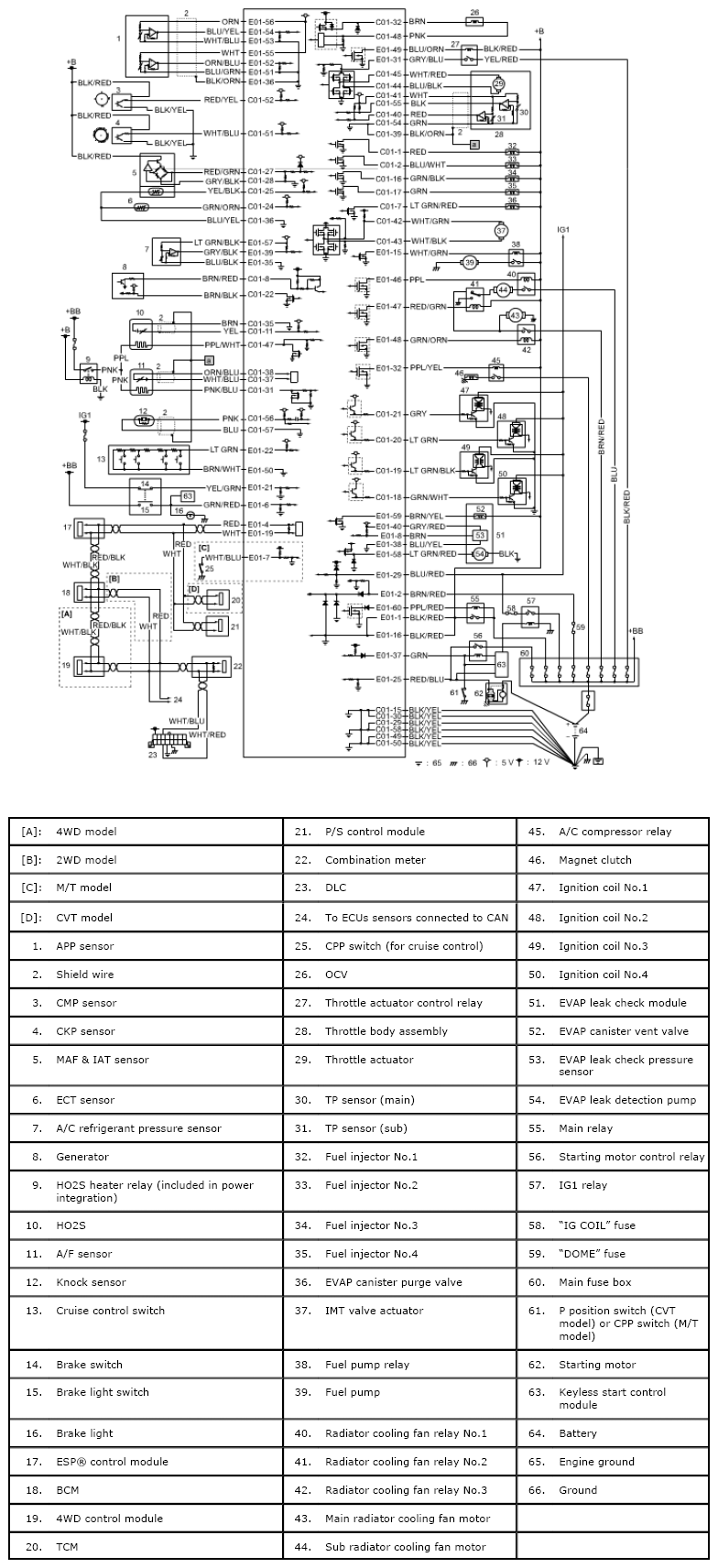

Fig 1: Engine Control System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
