Cruise Control System Component Location

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

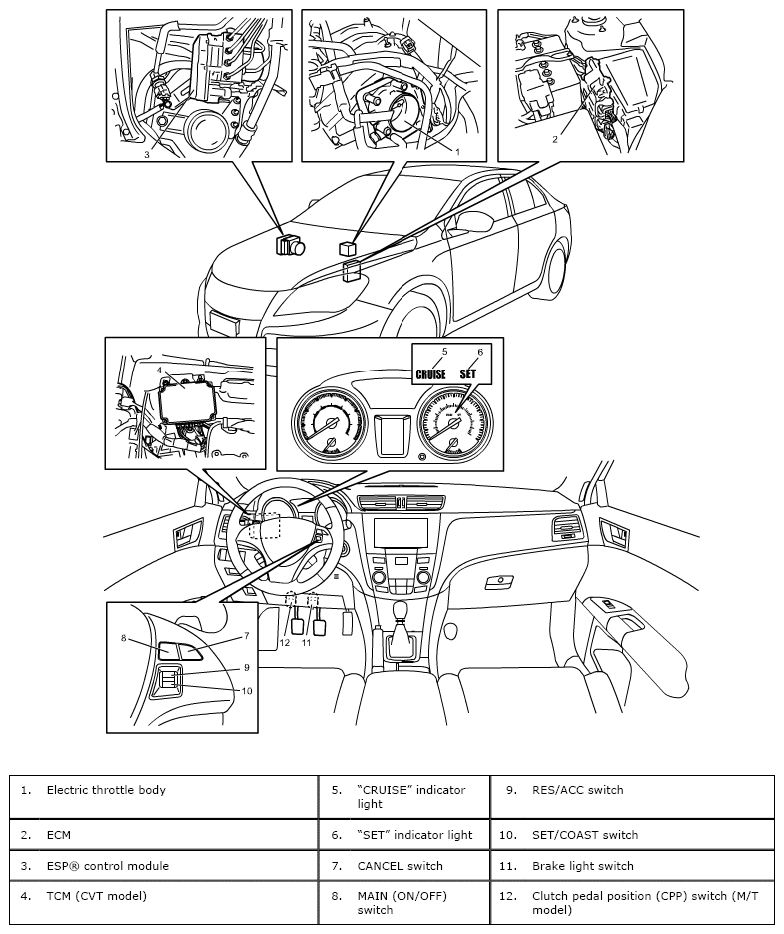

Fig 1: Identifying Cruise Control System Component Location
G06529277Courtesy of SUZUKI OF AMERICA CORP.
