Inspection of P/S Control Module and Its Circuits: Notes

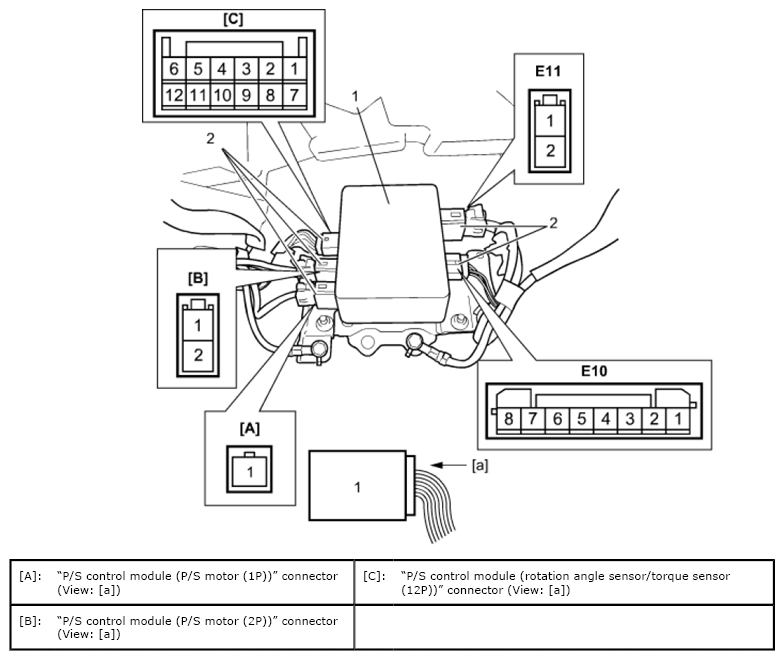

P/S control module (1) and its circuits can be checked at P/S control module wiring connectors (2) by measuring voltage and resistance.
CAUTION:
- If you connect a voltmeter or an ohmmeter directly to the P/S control module by disconnecting the P/S control module connectors, you can damage the P/S control module. Never connect a voltmeter or an ohmmeter directly to any terminal on the P/S control module by disconnecting the P/S control module connectors.
