CAN Communication Signal

CAN COMMUNICATION TERMINALS REFERENCE

Channel	Probe	Terminal No.
CH1	+	E10-4
CH1	-	Ground
CH2	+	E10-6
CH2	-	-

Measurement condition

Ignition mode: ON

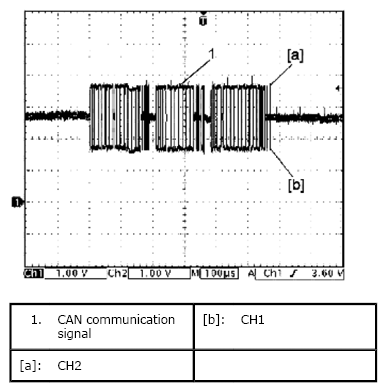

Fig 1: CAN Communication Signal Waveform Graph
Courtesy of SUZUKI OF AMERICA CORP.
