Oscilloscope Display
Oscilloscope Display
Shown below is typical waveform display provided by oscilloscope.
NOTE:
Display includes the following types of data:

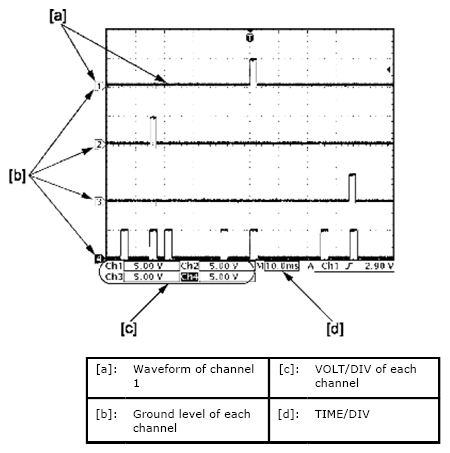

Fig 1: Channel Signal Waveform Graph
Courtesy of SUZUKI OF AMERICA CORP.
Waveforms may vary with measurement conditions and vehicle specifications.
