Rotation Angle Sensor Exciter Signal

ROTATION ANGLE SENSOR TERMINALS REFERENCE

Channel	Probe	Terminal No.
CH1	+	"P/S control module (rotation angle sensor/torque sensor)" connector - 11
CH1	-	"P/S control module (rotation angle sensor/torque sensor)" connector - 12

Measurement condition

Ignition mode: ON

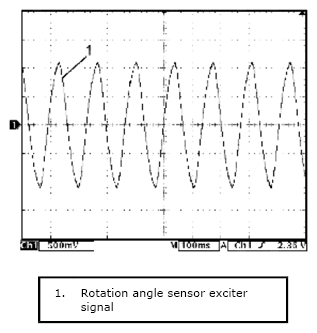

Fig 1: Rotation Angle Sensor Exciter Signal Graph
Courtesy of SUZUKI OF AMERICA CORP.
