Steering Gear Case Assembly Components
Steering Gear Case Assembly Components

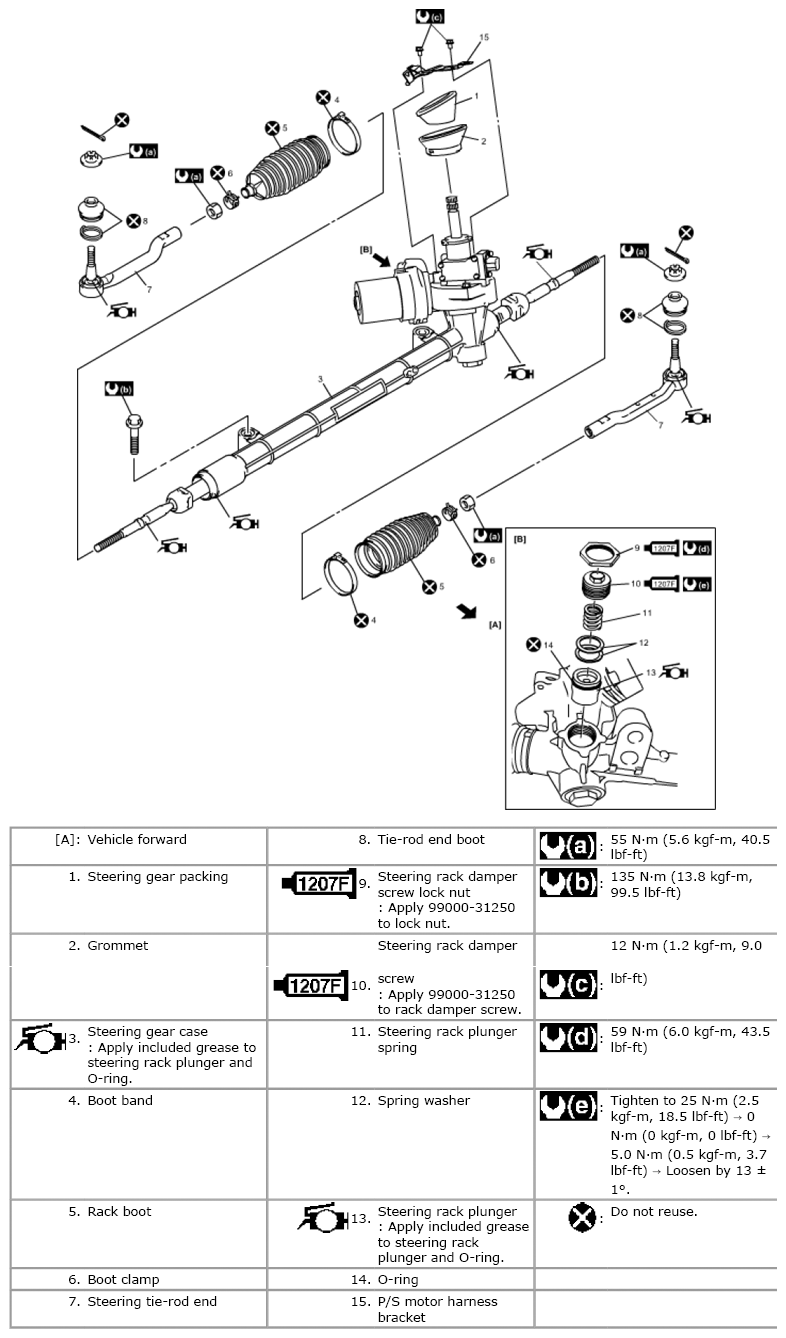

Fig 1: Steering Gear Case Assembly Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
