EPS System Wiring Circuit Diagram
›
Notes
EPS System Wiring Circuit Diagram: Notes

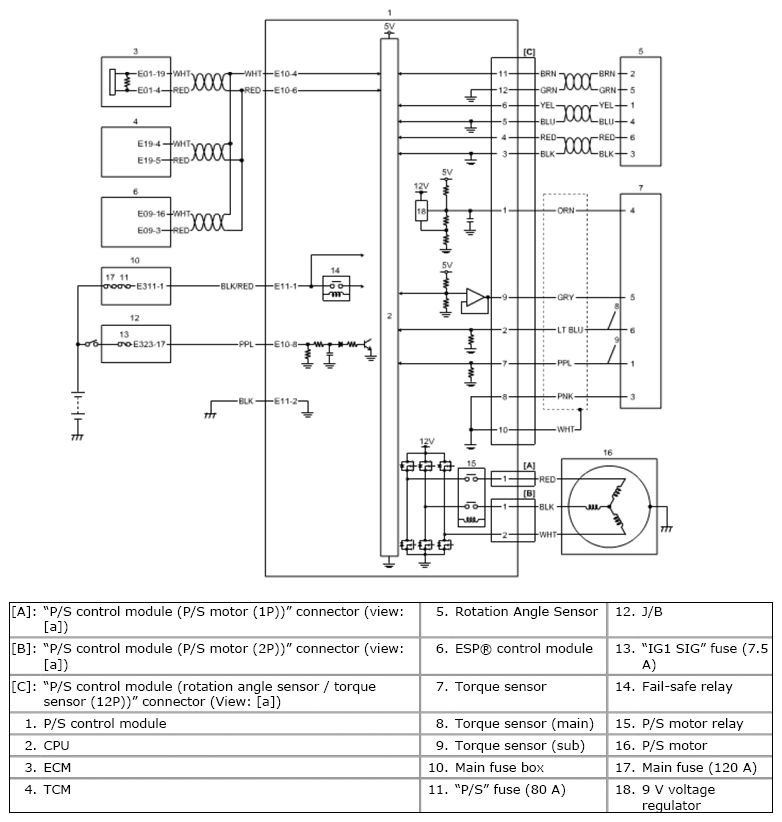

Fig 1: EPS System Wiring Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
