Front Strut Assembly Components
Front Strut Assembly Components

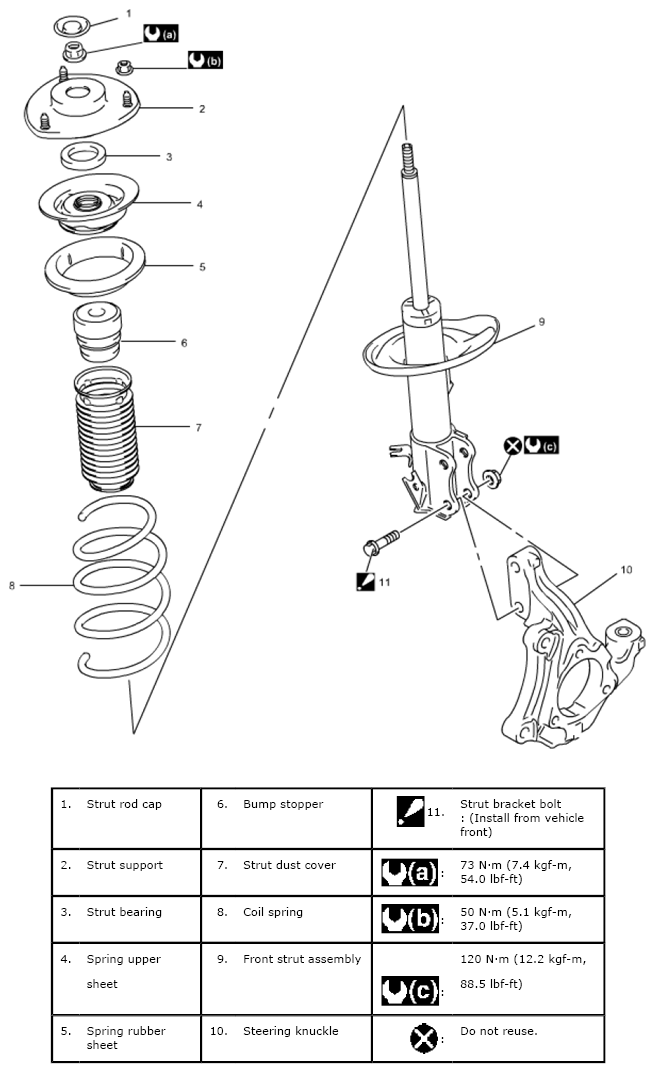

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
