Clutch Pedal Assembly Components
Clutch Pedal Assembly Components

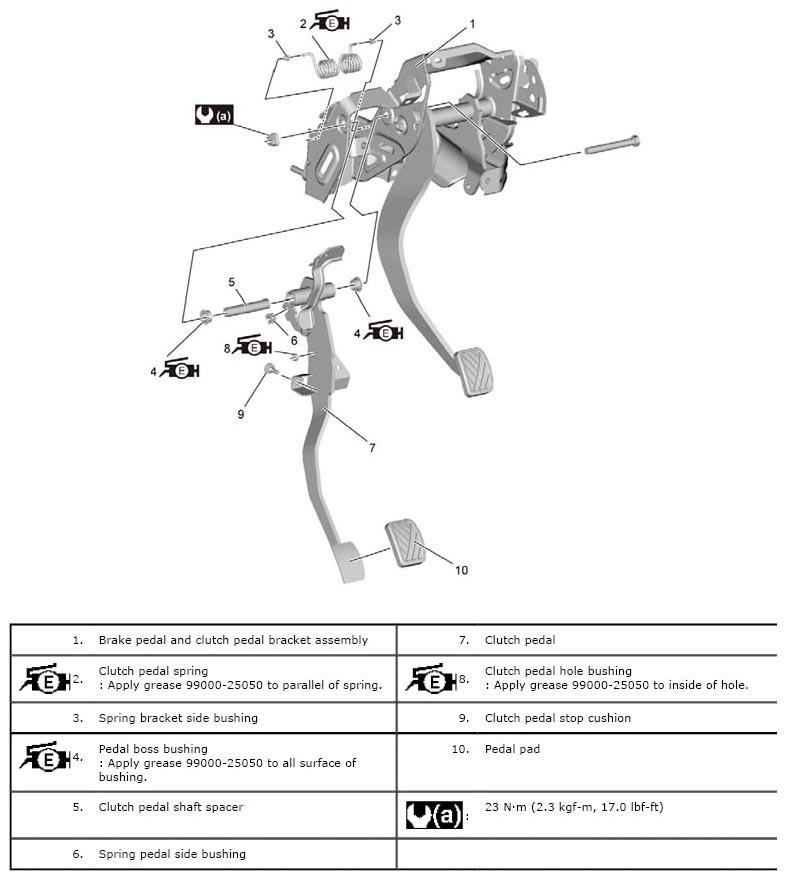

Fig 1: Clutch Pedal Assembly Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
