Gear Shift Control Lever and Cable Components
Gear Shift Control Lever and Cable Components

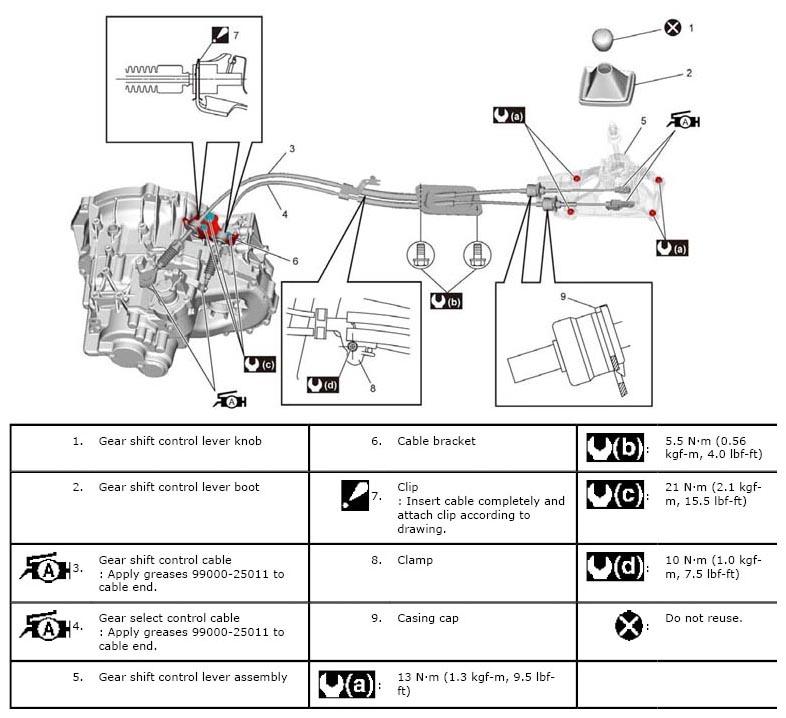

Fig 1: Gear Shift Control Lever And Cable Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
