Subframe Assembly - Front (3rd Generation) - Remove And Replace: Installation
- With an assistant, install the new front subframe assembly onto the powertrain table.
- Install the steering rack onto the front subframe assembly.

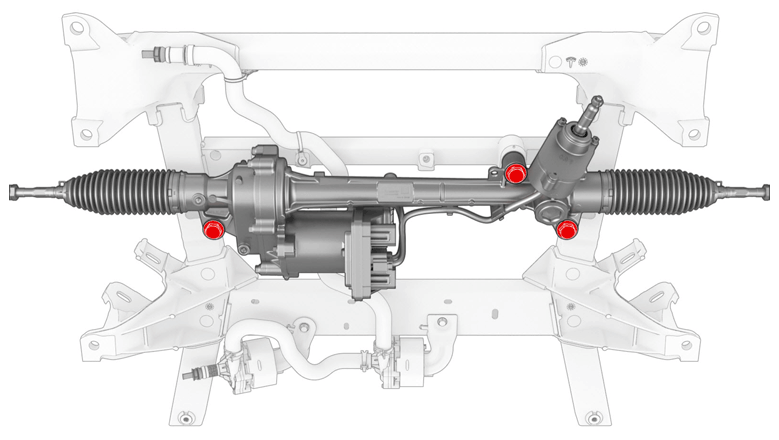

- Install the bolts (x3) that attach the steering rack to the front subframe assembly (torque 175 N.m).
 Courtesy of TESLA, INC.
|

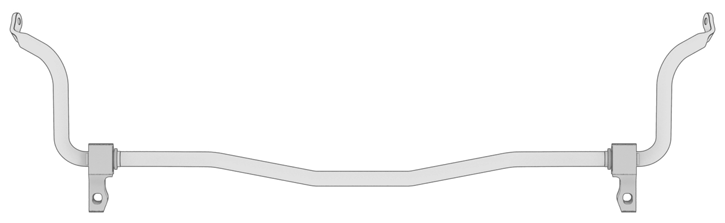

- Install the front stabilizer bar assembly onto the front subframe assembly.
 Courtesy of TESLA, INC.
|

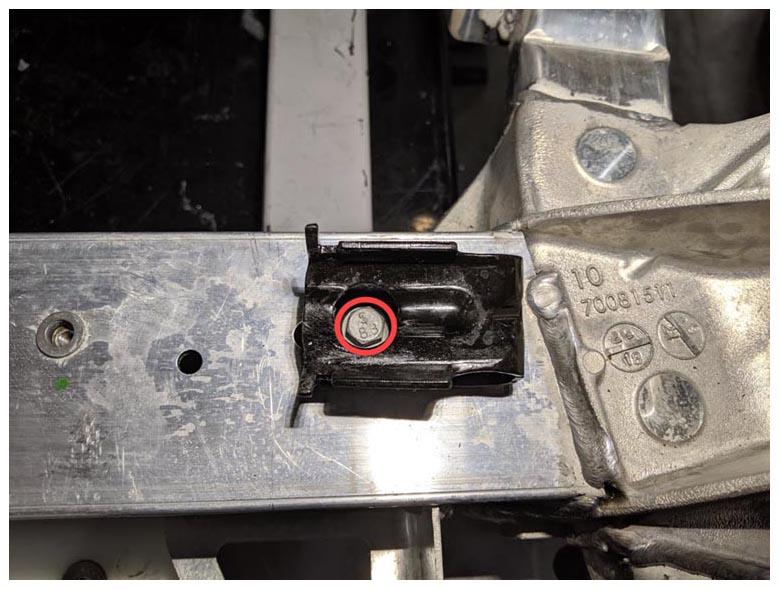

- Install the battery pump 2 bracket onto the front subframe assembly, and then install the bolt that attaches the bracket to the subframe (torque 12 N.m).
 Courtesy of TESLA, INC.
|
- Install the 3rd generation front subframe assembly. See SUBFRAME ASSEMBLY - FRONT (3RD GENERATION) (REMOVE AND INSTALL) .
