Harness - Media Control Unit - Retrofit: Install

  1. Install the new MCU Media Control Unit (Remove And Install) .

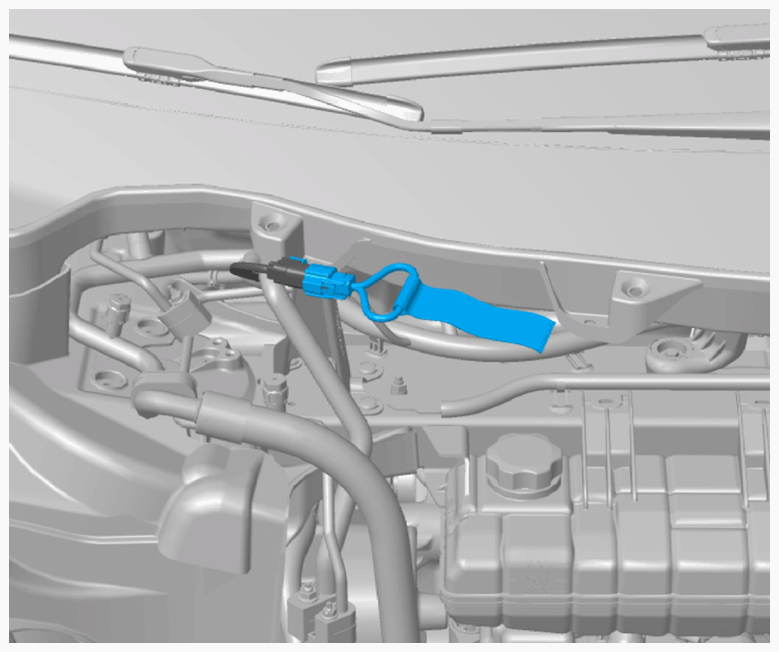

  2. Connect the first responder loop.
    G15034693Courtesy of TESLA, INC.

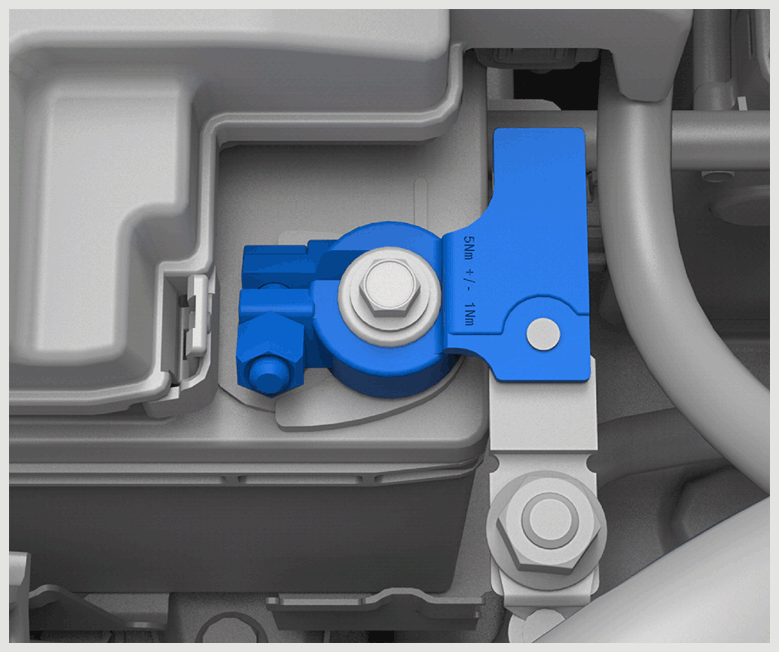

  3. Connect the 12V battery ground connection (torque 5 N.m).
    G15034694Courtesy of TESLA, INC.
