Sensor - Radar - Center - Front - Remove And Replace: Removal
- Remove the front fascia Fascia Assembly - Front (Remove And Install) .

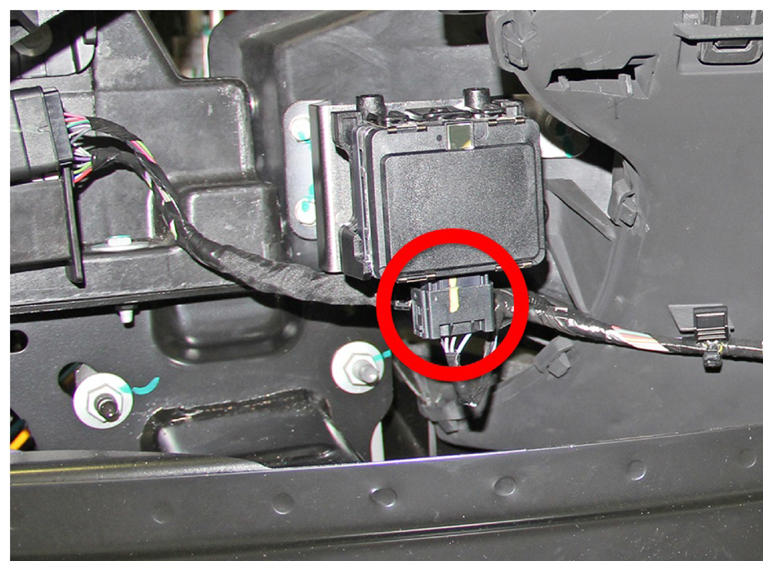

- Disconnect the harness on the bottom of the radar sensor.

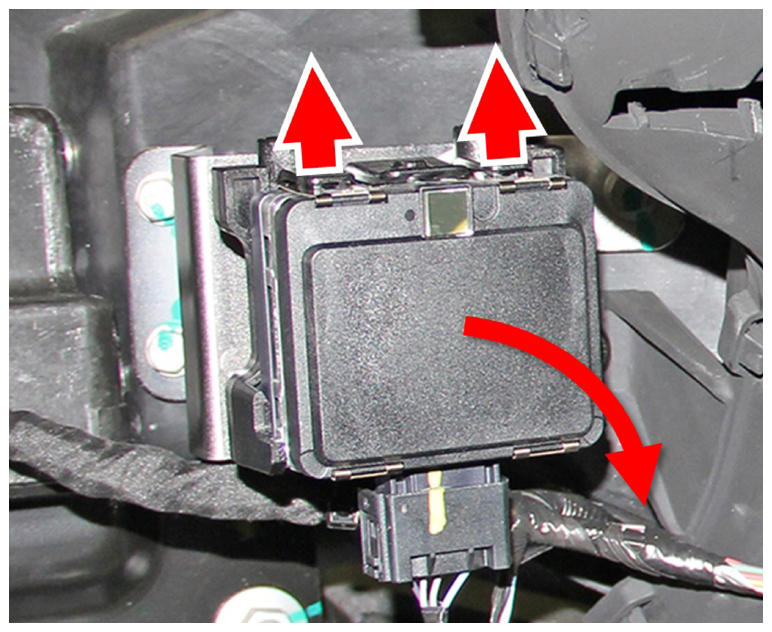

- Use a trim tool or flathead screwdriver to gently pry up the tabs on the top of the radar bracket. Gently release the radar sensor from the bracket.NOTE: The following image shows the electrical connector still connected to the bottom of the radar sensor.
- Remove the radar sensor from the vehicle.
