Cooling Fan Module - Remove And Install: Installation

Installation procedure is the reverse of removal, except for the following:

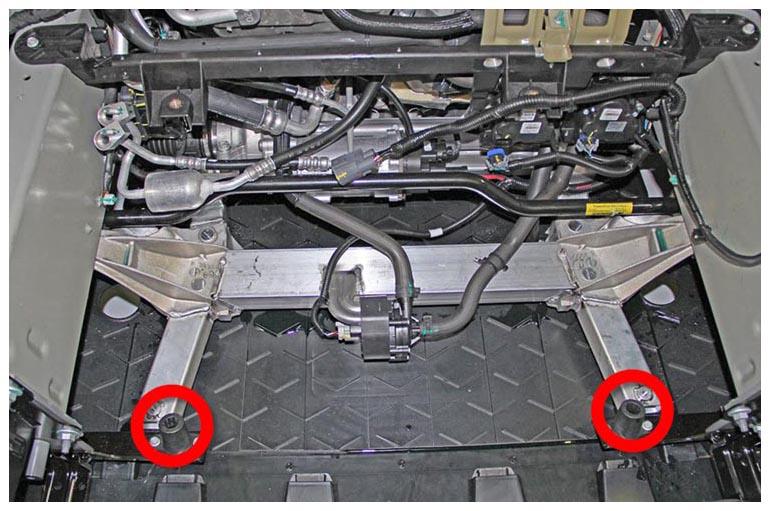

• Insert the lower isolators on the bottom of the fan shroud into the lower isolator bracket holes on the front end module to ensure that the cooling fan module is aligned correctly.

  Courtesy of TESLA, INC.

• Install the nuts (x2) that secure the A/C lines before installing the bolts (x2) that secure the cooling fan module assembly to the horizontal support beam.
  NOTE: Install new O-rings before installing the nuts.
• Perform a coolant purge. See COOLING SYSTEM - PARTIAL REFILL AND BLEED .
• Recharge the A/C system with refrigerant. See A/C REFRIGERANT RECOVERY AND RECHARGE (REMOVE AND REPLACE) .
• Calibrate the falcon doors from the touchscreen.
