Torque Specifications
TORQUE SPECIFICATIONS: DOOR - FRONT - LH (REMOVE AND REPLACE)
| Description |
Torque Value |
Recommended Tools |
Reuse/Replace |
Notes |

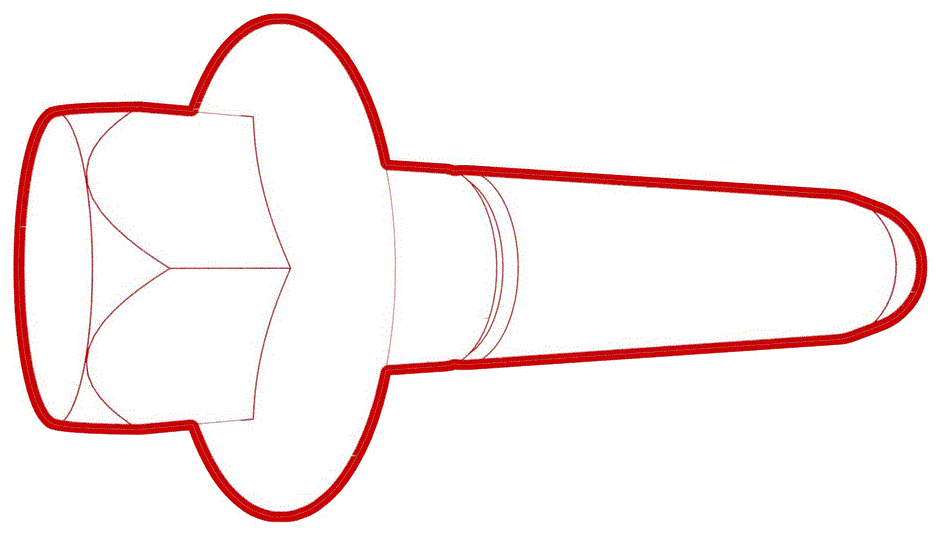

| Bolts that attach the LH front door to the hinge |
 24 N.m (17.7 ft-lbs) |
- 13 mm socket
- Flex head ratchet/flex head torque wrench
|
Reuse |
|
