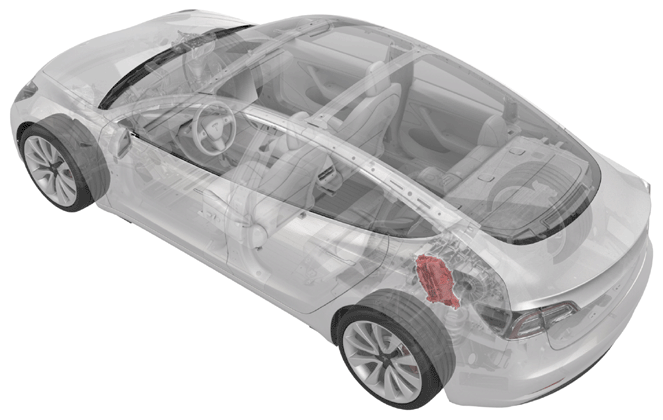

Inverter Air Leak Test: Notes
Last modified: 19/05/2023 20:17:38
NOTE:
See Personal Protection
to make sure to wear proper PPE when performing below procedure.
Revision History:
- 2023-05-18: Updated tools list and added photos for 4DU adapter and plug.
- 1450875-00-A Kit, Inverter Leak Test Adapter, M3
- 1026636-00-A Pack Enclosure Leak Tester, HV Battery
- 1140311-00-A Lever Lock, HV Connector, Model 3
- 1880705-00-A 4DU Inverter Leak Test Plug Assembly
- 1942298-00-A 4DU Inverter Leak Test Adapter
