Touchscreen - HW4 - Remove And Replace: Remove

WARNING: This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. Open the RH front door.
  2. Lower the RH front window.
  3. Move the RH front seat rearwards.
  4. Disconnect LV power. See LV Power - Disconnect And Connect .
  5. Remove the instrument panel service panel. See Service Panel - Instrument Panel (Remove And Replace) .

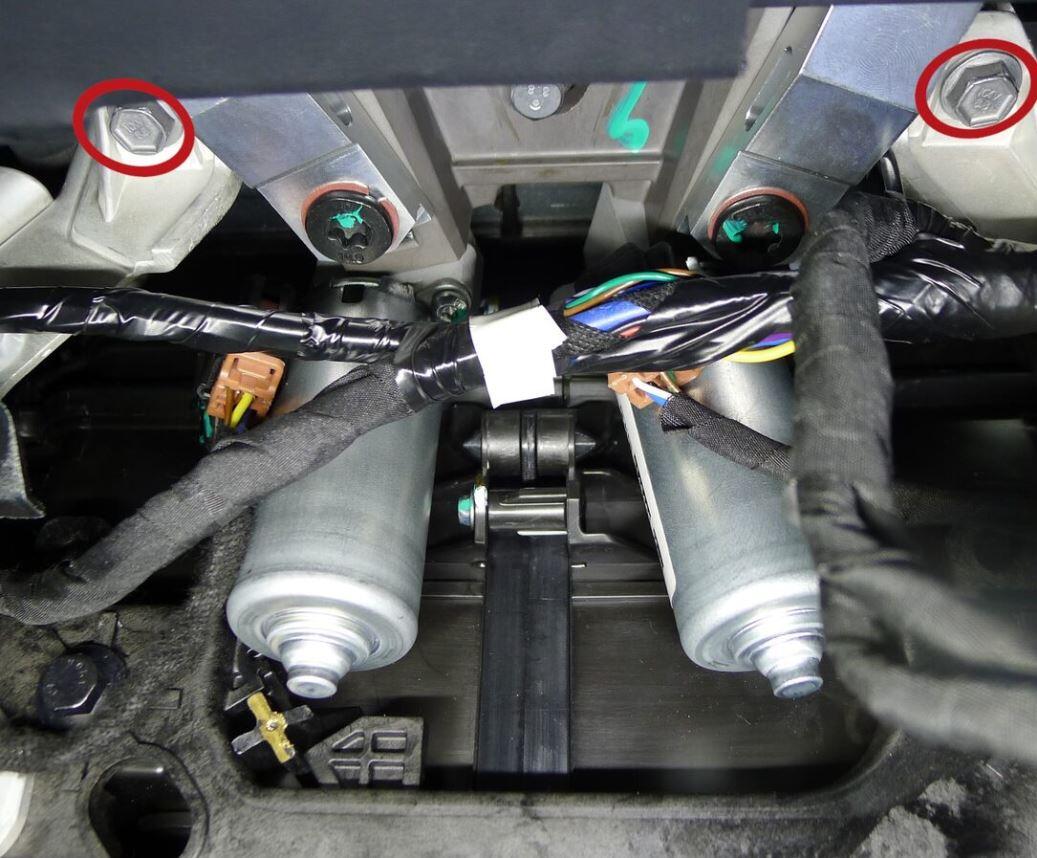

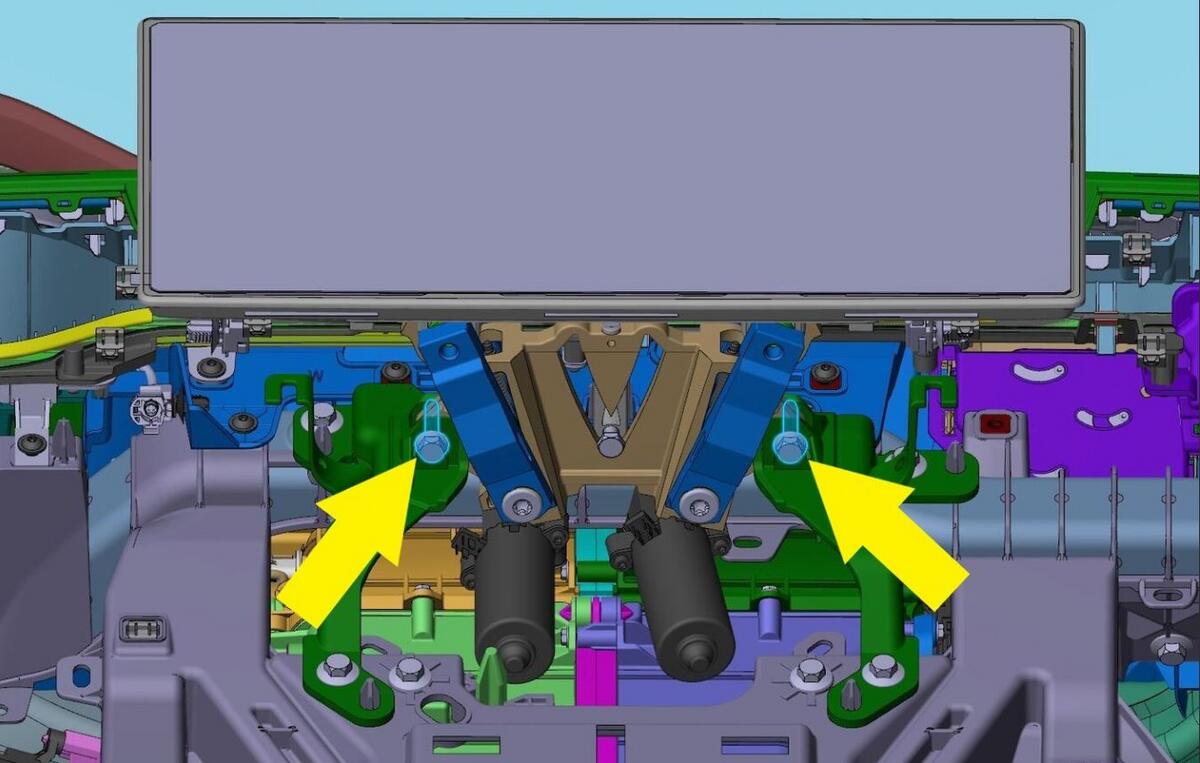

  6. Remove the bolts (x2) that attach the touchscreen to the instrument panel carrier.

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • 10 mm deep socket
    • Ratchet/torque wrench
    G00645765Courtesy of TESLA INC
    G00645766Courtesy of TESLA INC

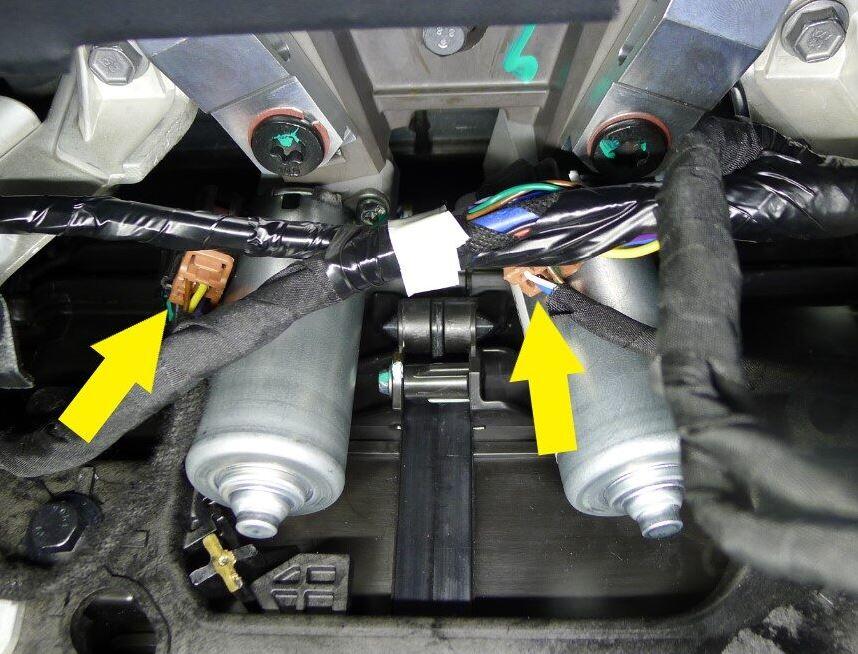

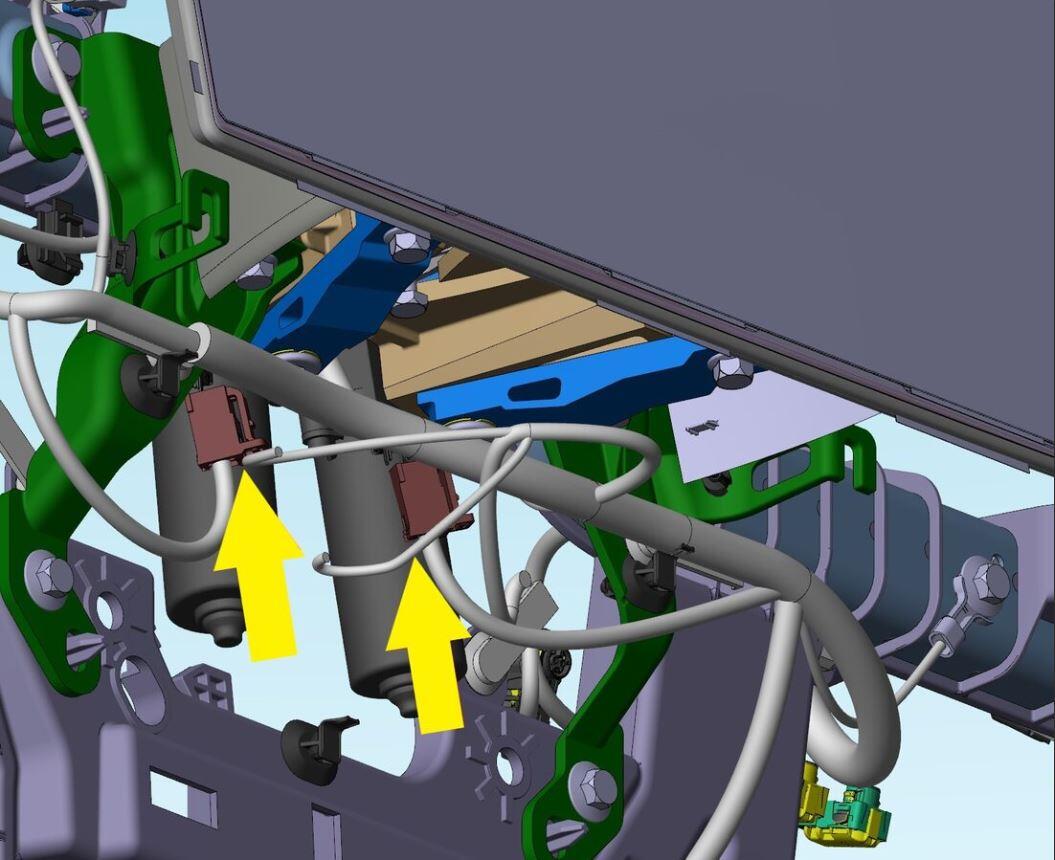

  7. Disconnect the touchscreen motor connectors (x2).
    G00645767Courtesy of TESLA INC
    G00645768Courtesy of TESLA INC

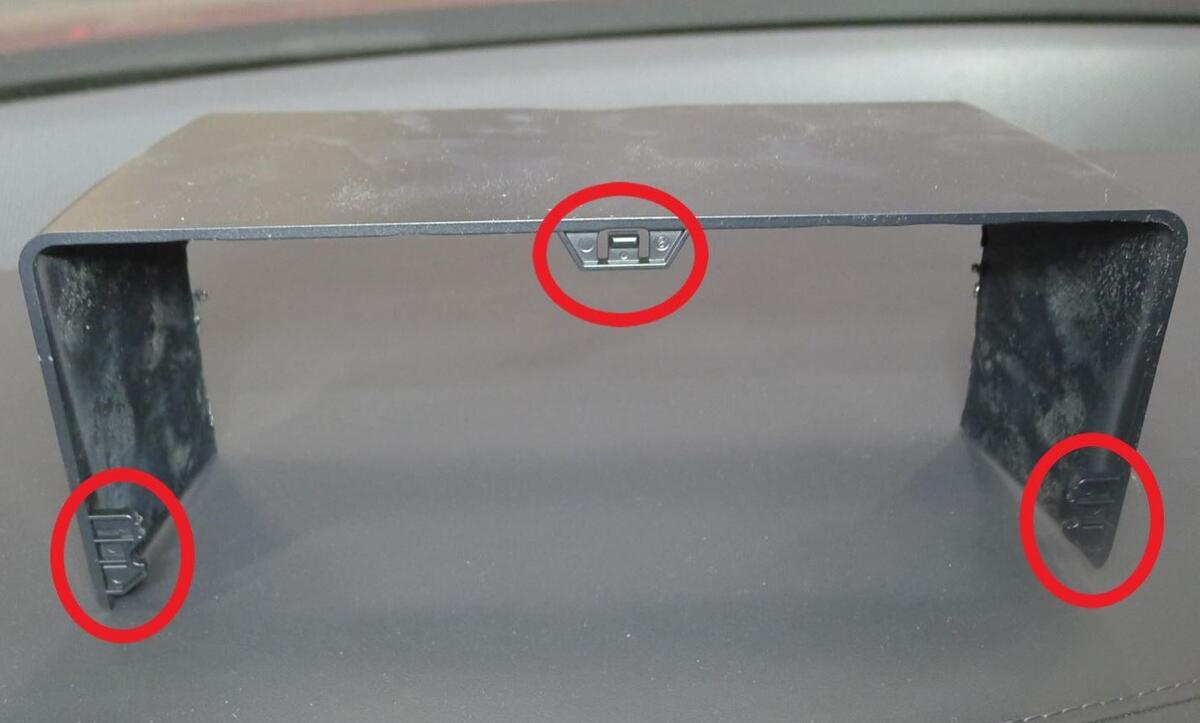

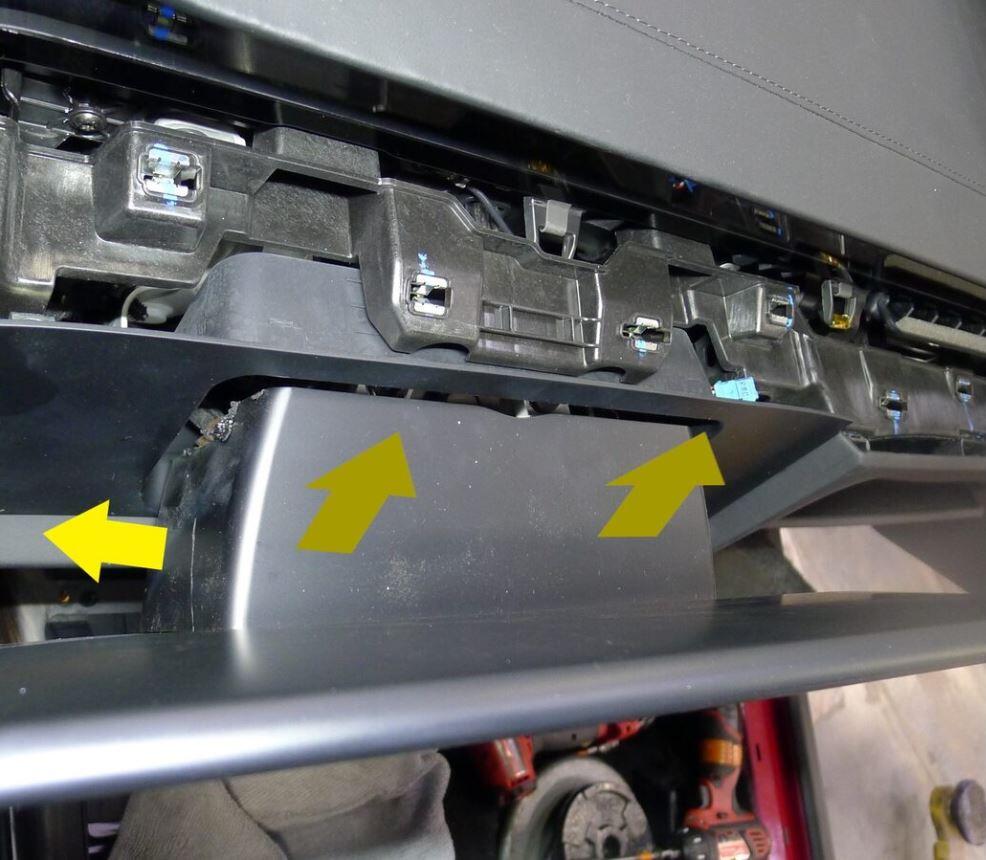

  8. Release the tabs (x3) that attach the touchscreen shroud to the touchscreen, and then remove the shroud from the vehicle.
    NOTE: Slide the display outwards until the shroud fully clears the instrument panel and support. Release the bottom tabs and pull upwards.
    G00645769Courtesy of TESLA INC
    G00645770Courtesy of TESLA INC

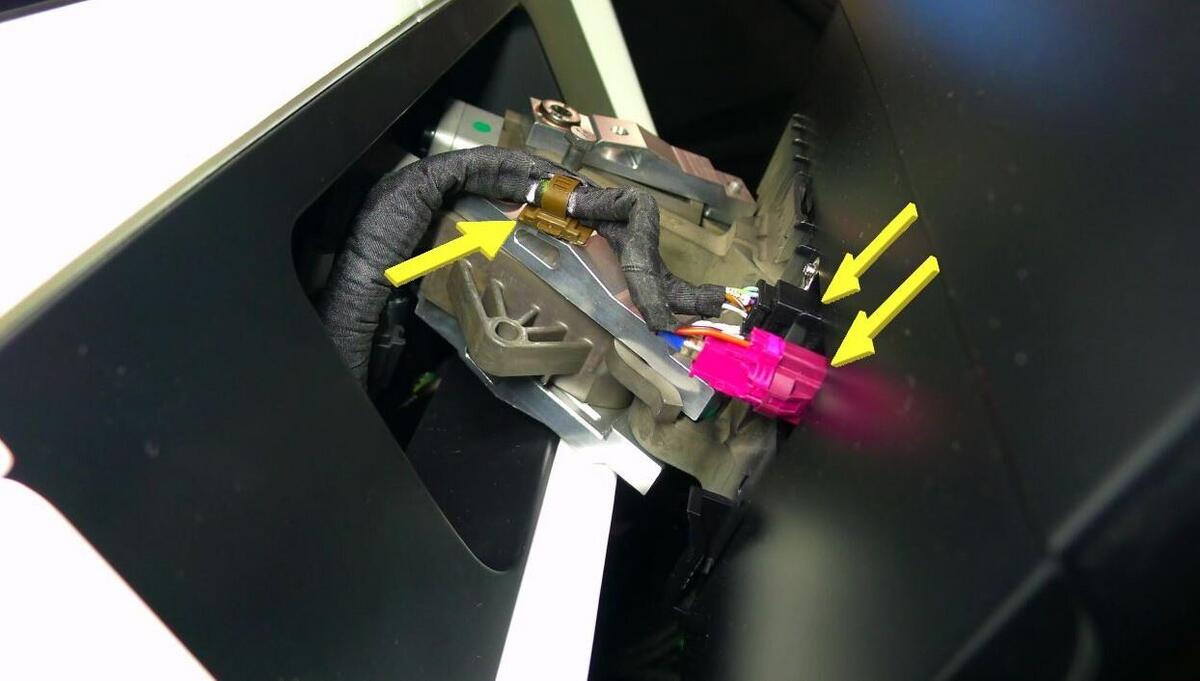

  9. Release the clip that attaches the harness to the touchscreen pivot mechanism arm, and then disconnect the touchscreen coax and power connectors (x2).
    NOTE: Support the touchscreen and slide it rearwards to access the connectors.

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    G00647031Courtesy of TESLA INC

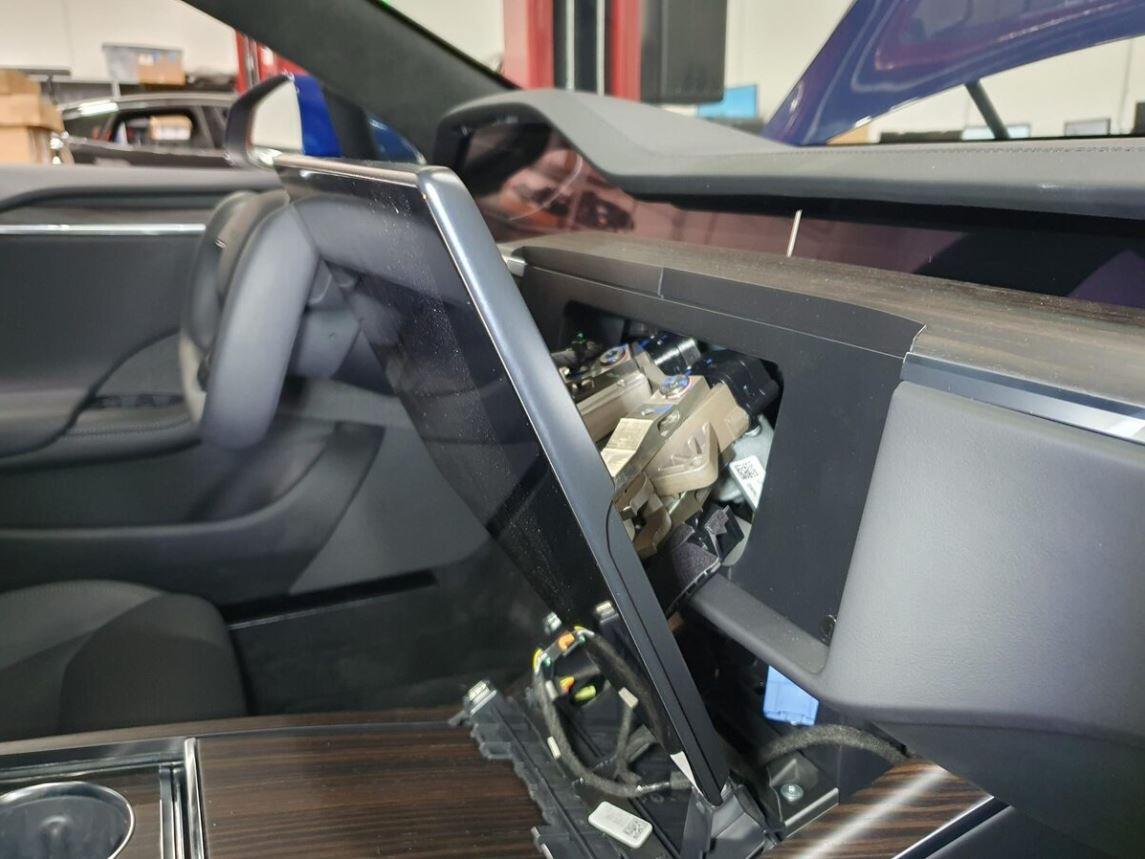

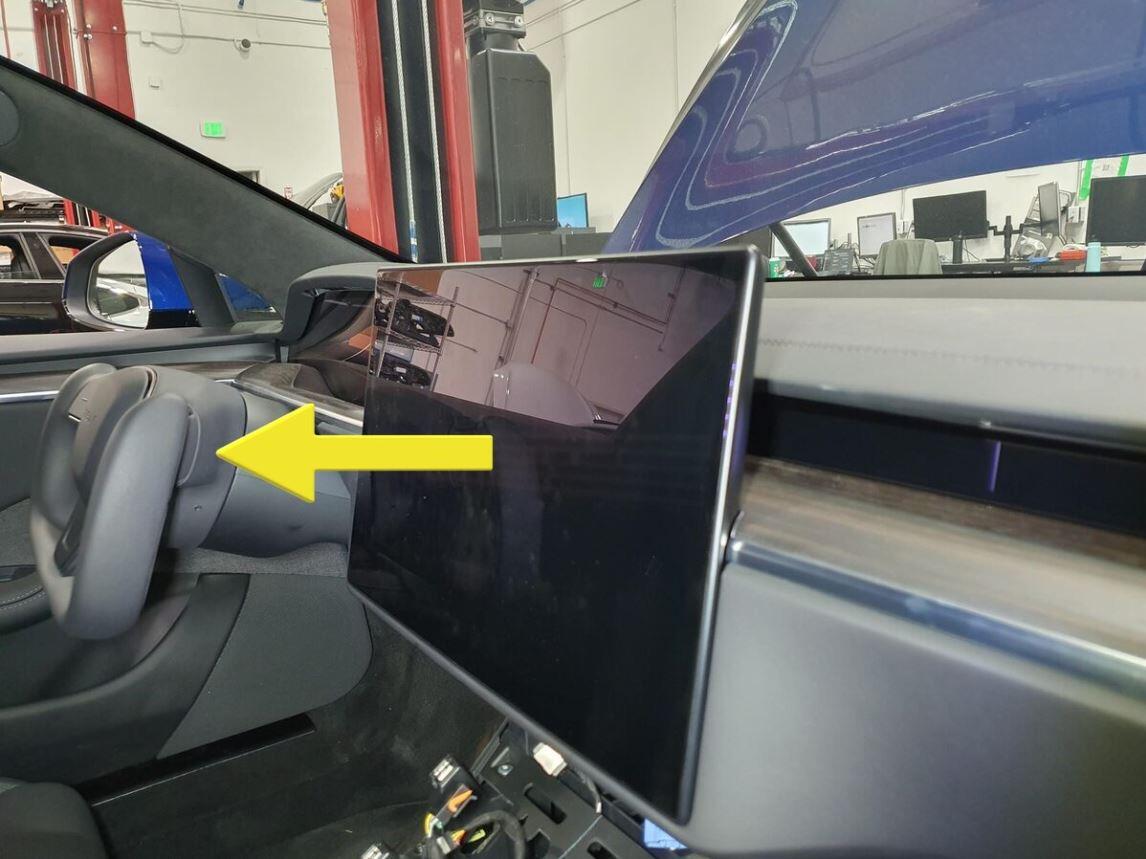

  10. Remove the touchscreen and pivot mechanism from the vehicle.
    G00647032Courtesy of TESLA INC
    G00647033Courtesy of TESLA INC
  11. Place the touchscreen and pivot mechanism on a soft and clean working surface.
    G00647034Courtesy of TESLA INC

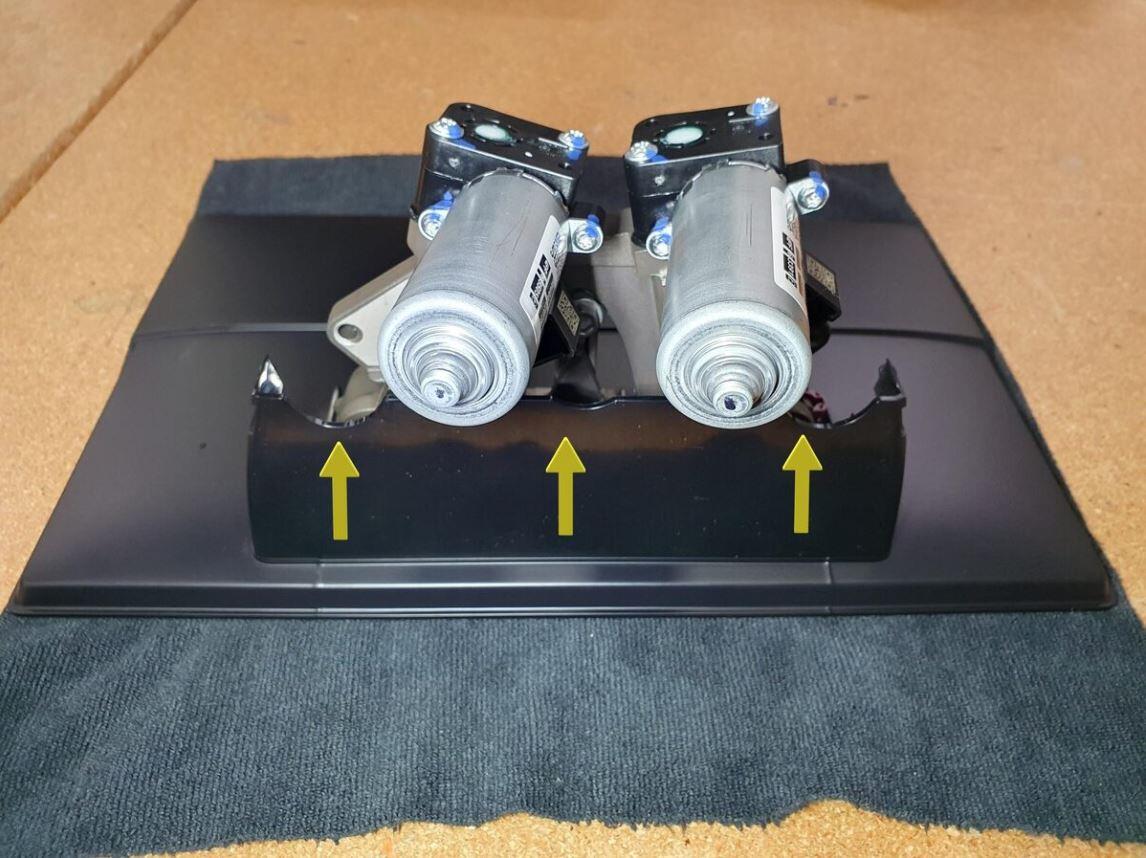

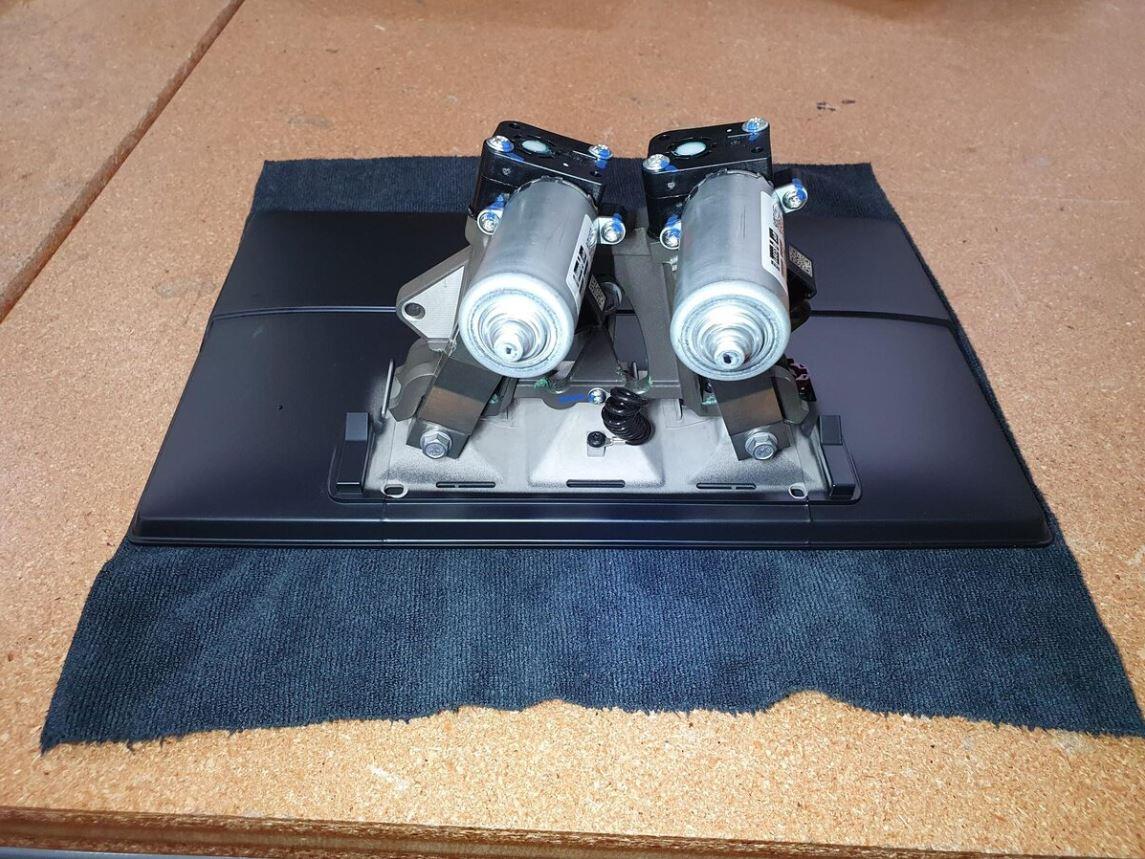

  12. Release the tabs (x3) that attach the touchscreen lower shroud cover to the touchscreen, and then remove the cover from the touchscreen.
    NOTE: Slide the lower shroud cover upwards, and then outwards to remove from the touchscreen.
    G00647035Courtesy of TESLA INC
    G00647036Courtesy of TESLA INC

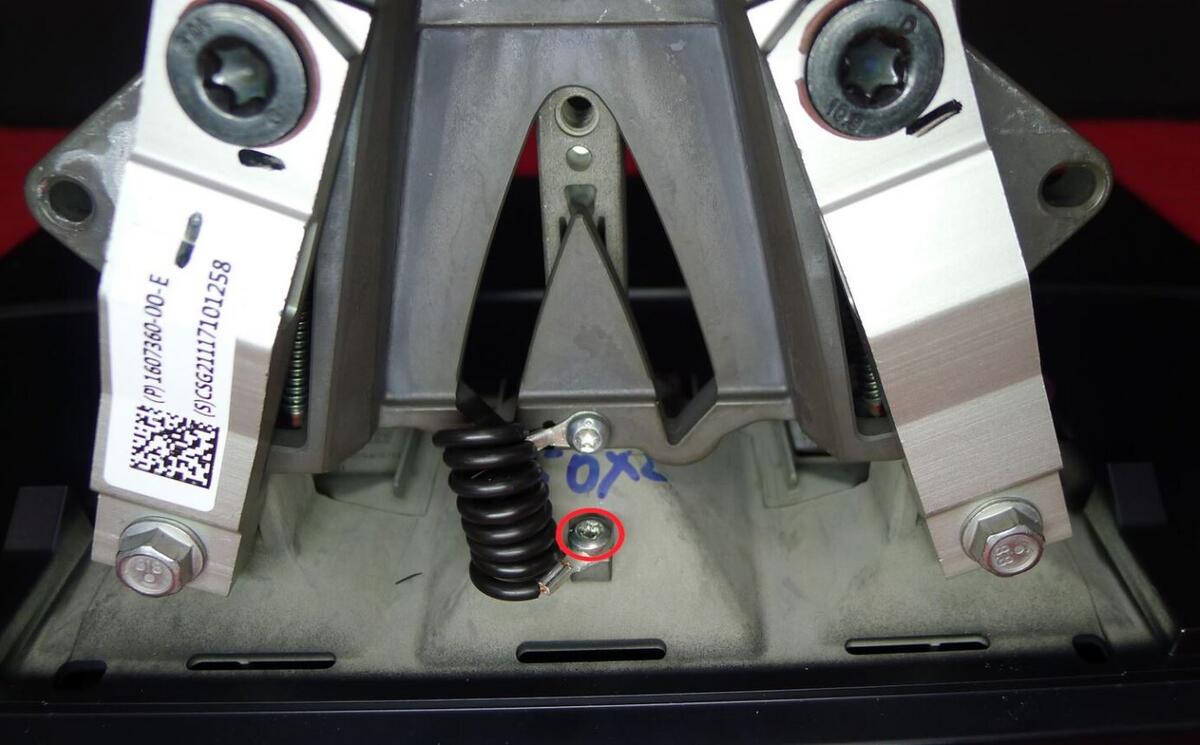

  13. Remove the bolt that attaches the touchscreen ground strap to the touchscreen, and then remove the strap from the touchscreen.
    CAUTION: Failure to re-connect the ground strap will result in display functionality issues.
    NOTE: Inspect the ground strap bolt and replace if damaged.

    Tip: Use of the following tool(s) is recommended:

    • Mini Ratchet Bit Set
    G00647037Courtesy of TESLA INC
  14. Remove the touchscreen pivot mechanism. See Mechanism - Pivot - Touchscreen - Remove And Replace .
