Touchscreen - Rear - Remove And Replace: Remove

Open all the doors and lower the LH front window.
Move the front seats forward.
Remove the center console lower rear panel. See Panel - Lower Rear - Center Console (Remove and Replace) .

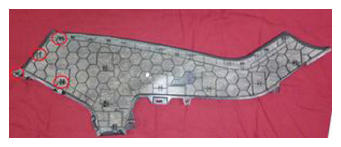

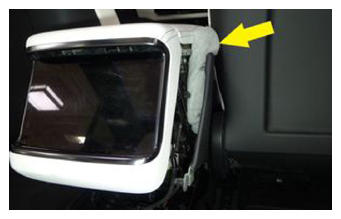

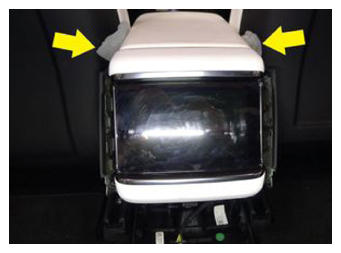

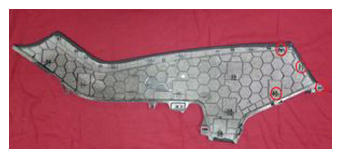

Release the clips (x4) that attach the rear portion of the LH center console side panel to the center console assembly, and then wedge a shop towel between the panel and center console assembly to hold the panel away from the assembly. Repeat this step for the RH center console side panel.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

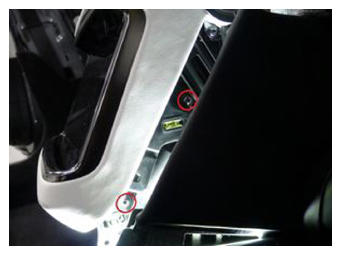

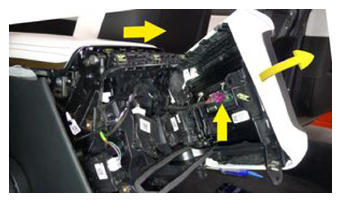

Remove the screws (x4) that attach the center console air wave cap to the center console, pull the air wave cap rearward and to the right to access the electrical connector, and then disconnect the electrical connector.
1 N.m (.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

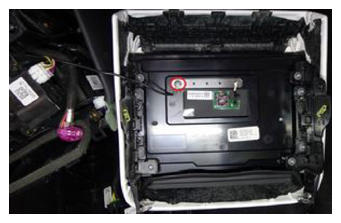

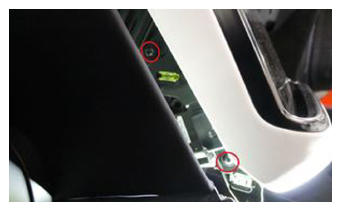

Release the screw that attaches the center console air wave cap ground harness to the air wave cap, and then remove the air wave cap from the center console assembly.
1 N.m (.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

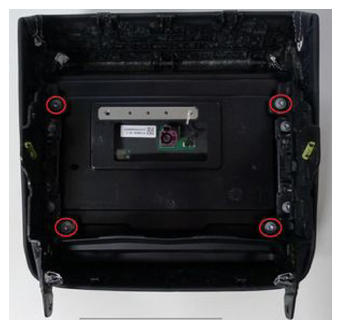

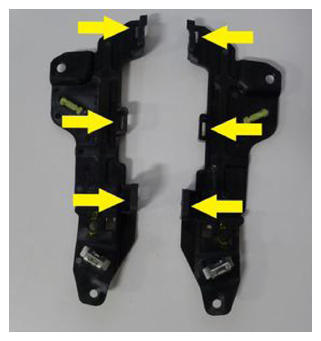

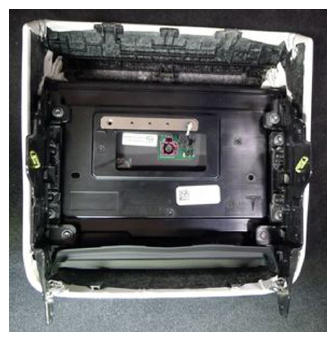

Remove the screws (x4) that attach the air wave cap surround brackets to the air wave cap assembly, and then remove the brackets from the assembly.
NaN N.m (NaN ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

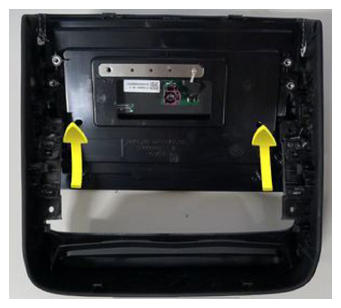

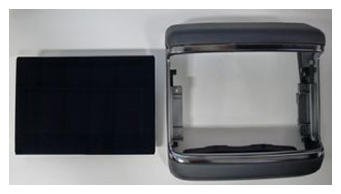

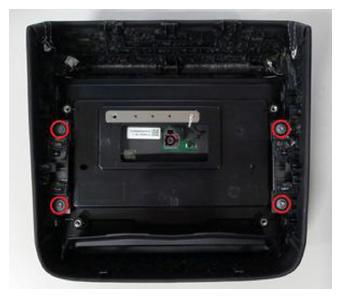

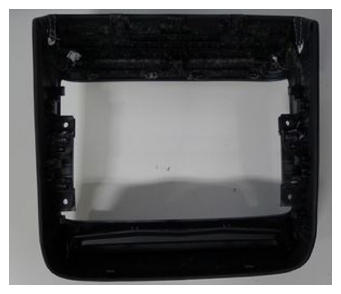

Remove the screws (x4) that attach the center console air wave cap to the rear touchscreen, and then slide the touchscreen out of the air wave cap through the top of the assembly.
NaN N.m (NaN ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
