Center Console - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.

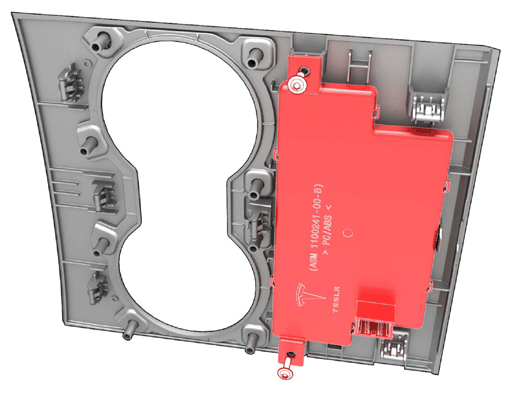

  1. Position the security controller onto the new cup holder decor panel, and then install the screws that attach the controller to the panel.

    1.6 N.m (1.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    G14824425Courtesy of TESLA, INC.
  2. Connect the electrical connector to the security body controller module.
    G14824426Courtesy of TESLA, INC.
  3. Attach the clips (x6) that attach the cup holder decor panel to the center console assembly.
    G14824427Courtesy of TESLA, INC.
  4. Install the RH center console bright strip to the center console assembly.
    G14824428Courtesy of TESLA, INC.

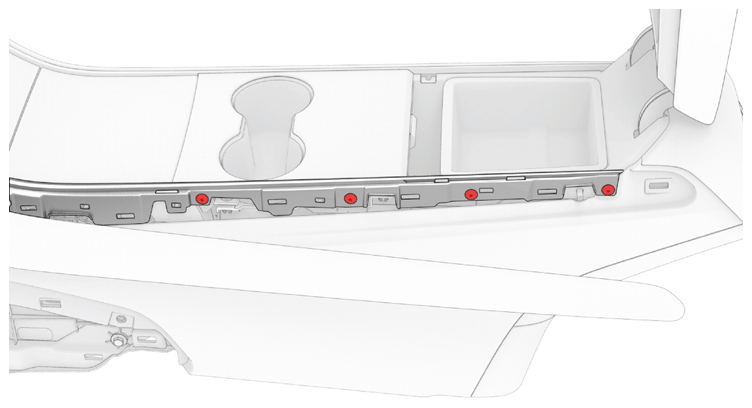

  5. Install the screws (x4) that attach the RH center console bright strip to the center console assembly.

    1.6 N.m (1.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    G14824429Courtesy of TESLA, INC.

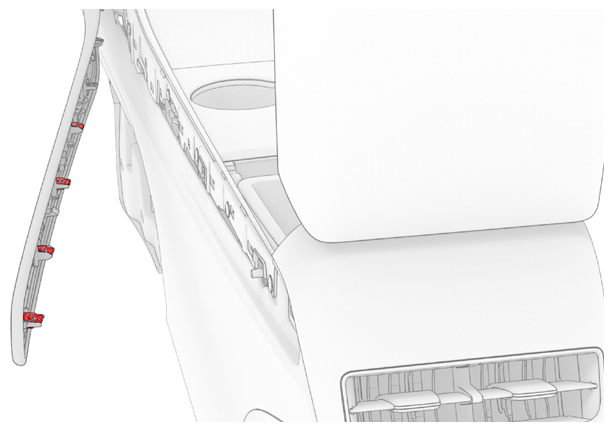

  6. Install the RH decor trim onto the center console assembly
    G14824430Courtesy of TESLA, INC.
  7. Repeat step  4 through step  6 for the LH side of the center console.
  8. Install the center console assembly. See CENTER CONSOLE (REMOVE AND INSTALL) .
