Airbag - Driver - Remove And Replace: Install

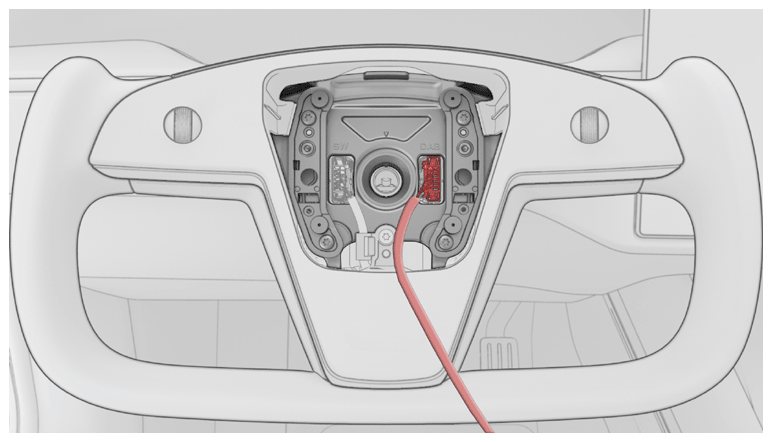

  1. Connect the driver airbag electrical connector.
    G15099496Courtesy of TESLA, INC.

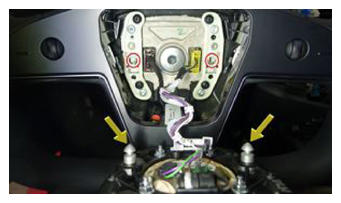

  2. Position the driver airbag assembly onto the steering yoke so that the datums are aligned with the clips.
    G15099497Courtesy of TESLA, INC.

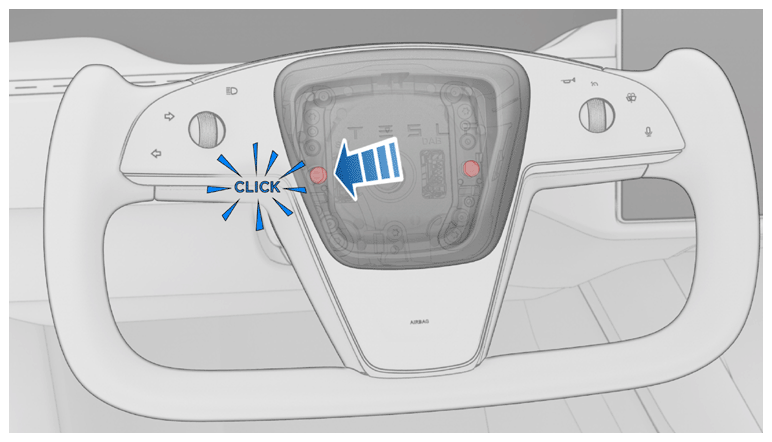

  3. Press the LH side of the driver airbag assembly into the steering yoke until an audible click is heard and the spring clip is fully seated.
    WARNING: Failure to fully seat both sides of the airbag can result in the airbag falling out or not performing as intended.
    G15099498Courtesy of TESLA, INC.

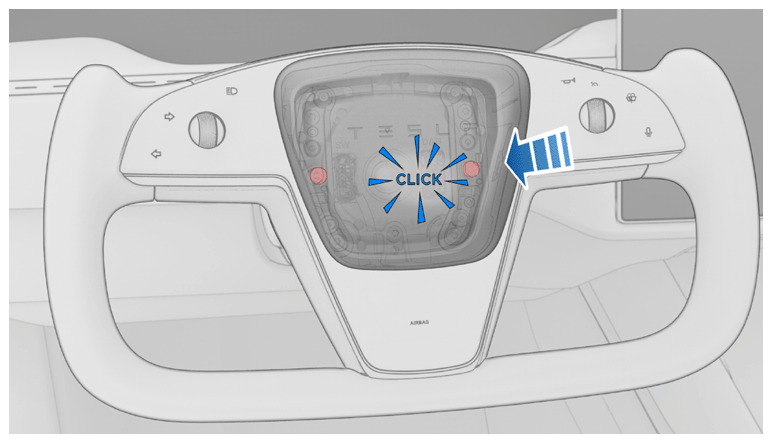

  4. Press the RH side of the driver airbag assembly into the steering yoke until an audible click is heard and the spring clip is fully seated.
    WARNING: Failure to fully seat both sides of the airbag can result in the airbag falling out or not performing as intended.
    G15099499Courtesy of TESLA, INC.

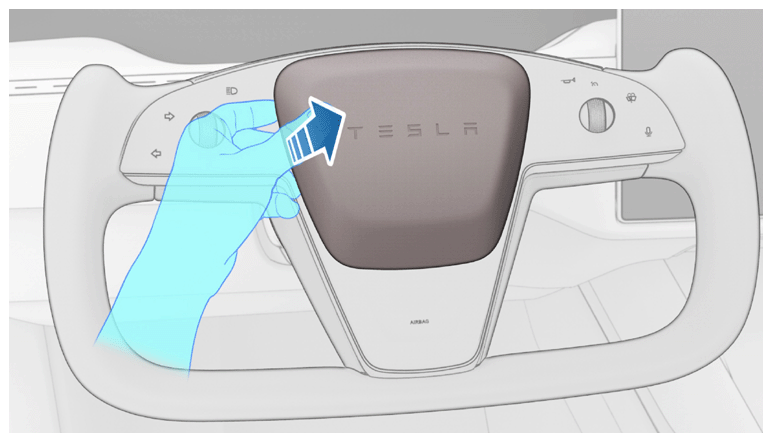

  5. Perform a light pull test on the LH side of the driver airbag to verify that it is properly secured to the steering yoke.
    G15099500Courtesy of TESLA, INC.

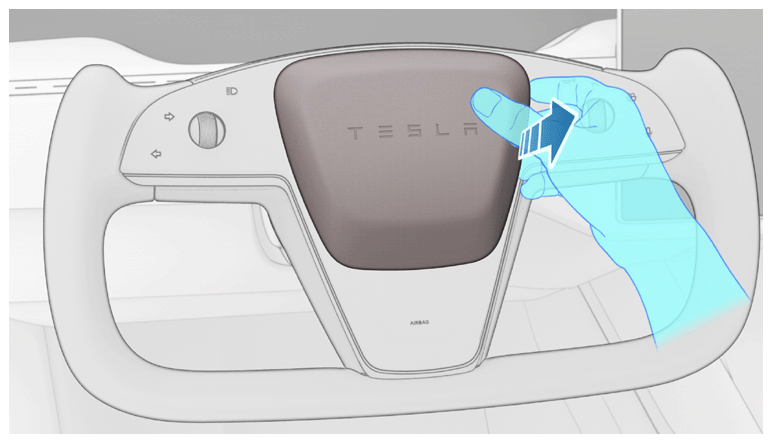

  6. Perform a light pull test on the RH side of the driver airbag to verify that it is properly secured to the steering yoke.
    G15099501Courtesy of TESLA, INC.

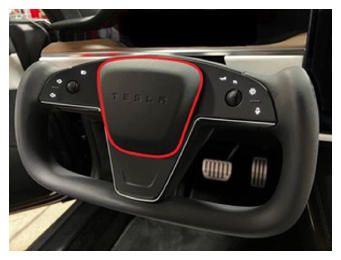

  7. Check that the gap between the driver airbag assembly and the steering yoke is consistent around the perimeter of the airbag.
    G15099502Courtesy of TESLA, INC.
  8. Connect LV power. See LV Power (Disconnect and Connect) .
  9. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  10. Raise the LH and RH front windows.
  11. Close the LH front door.
