Service Panel - Instrument Panel - Remove And Replace: Install

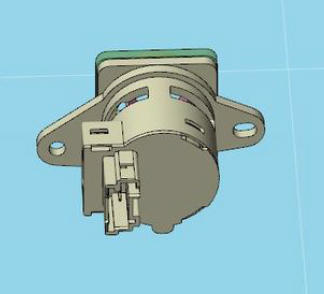

Install the screws (x2) that attach the cabin temperature sensor fan to the service panel.
NOTE: T20. Torque 2 N.m.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

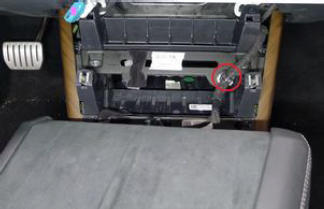

Connect the cabin temperature sensor fan electrical connector.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

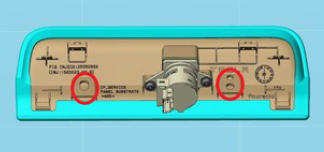

Secure the clips (x2) that attach the diagnostic and CAN harnesses to the service panel.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

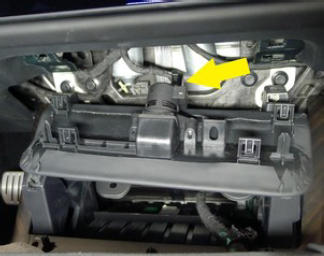

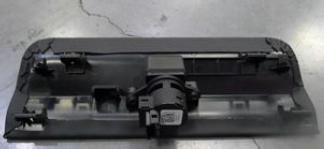

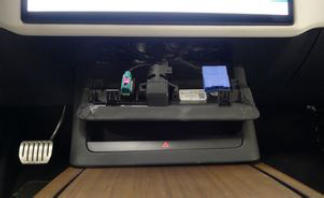

Install the service panel.
NOTE: x2 tabs, x4 locating pins.

NOTE: Slide forward to engage the locating pins, and then secure the tabs upward into the instrument panel.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

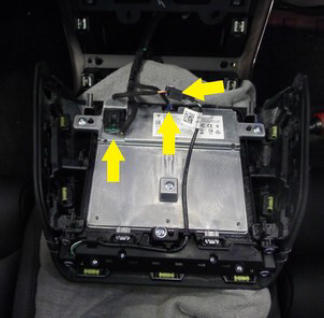

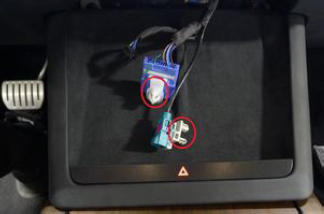

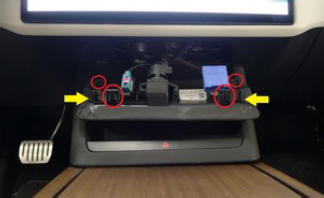

Install the clip, and then connect the phone dock electrical connectors (x3).

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

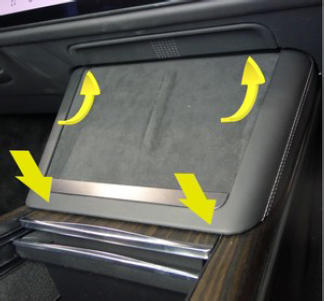

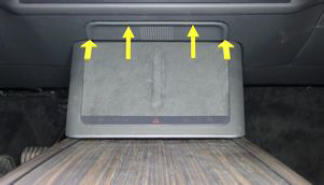

Install the phone dock.
NOTE: x4 tabs, x2 locating pins.

NOTE: Slide the locating pins forward into the instrument panel, and then secure the tabs down into the center console.

Courtesy of TESLA, INC.
