Tire Rotation: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove all 4 wheels. See WHEEL (REMOVE AND INSTALL) .
  2. Check if the tires are offset or directional.

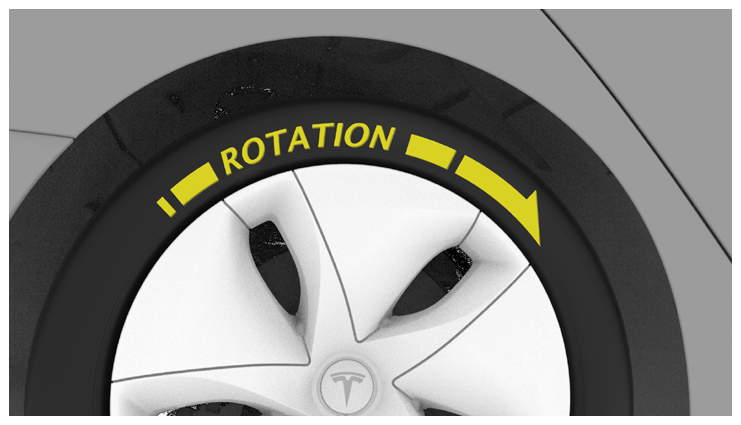

    NOTE: Directional tires are identified with an arrow indicating the direction of rotation on the sidewall.
    G14749959Courtesy of TESLA, INC.
  3. Reinstall the wheels according to the type of tires.

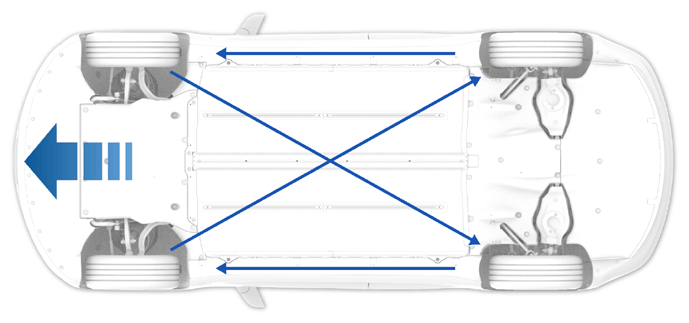

    Non-Directional Tires, All Tires Same Size

    G14749960Courtesy of TESLA, INC.

    Move front tires to opposite side in rear. Move rear tires only to front.

    NOTE: Mobile Service technicians, factory tires may be rotated as indicated in "Non-Directional Tires, Front and Rear Different Size".

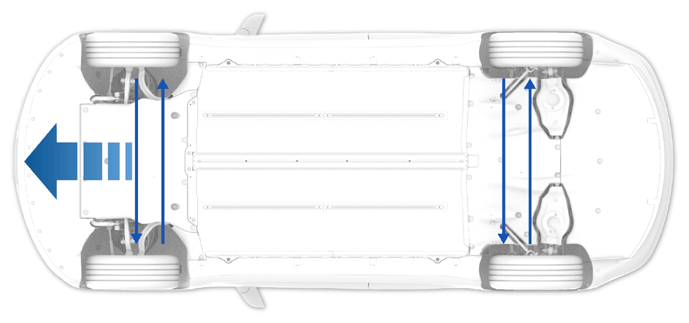

    Non-Directional Tires, Front And Rear Different Size

    G14749961Courtesy of TESLA, INC.

    Move LH to RH. Do not move front to rear.

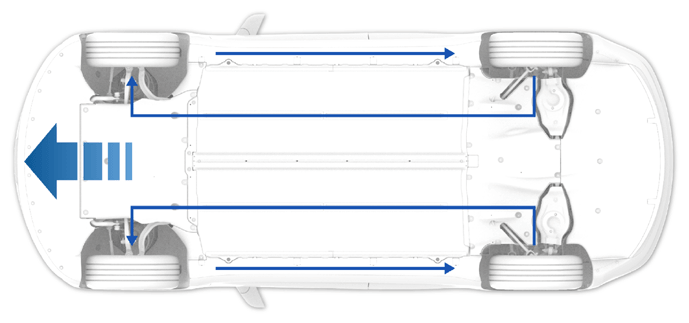

    Directional Tires

    G14749962Courtesy of TESLA, INC.

    Move front tires to rear. Do not move from LH to RH.

  4. Install all 4 wheels. See WHEEL (REMOVE AND INSTALL) .
  5. Reset the tire estimates using one of the following methods.
    • On the touchscreen, touch Controls > Service > Chassis > Alignment & Tires > Reset Learned Tire Values  and then follow the on-screen instructions.
    • Use Toolbox 3:
      • Connect a laptop with Toolbox 3 to the vehicle.
      • In Toolbox, click the Actions  tab, and then search for "Reset Tire Estimates".
      • Click PROC_DIR_CLEAR-LEARNT-TIRE-OFFSET, and then click Run  and allow the routine to complete.
      • Disconnect Toolbox and remove the laptop from the vehicle.
